Ornilock Steel 16.5mm 100 Degree Countersunk Head Rivet
Ornilock Steel 16.5mm 100 Degree Countersunk Head Rivet
SKU:ORN-3c7b35
High-strength 16.5mm steel rivet with 100° countersunk head. Ideal for structural and renewable energy applications.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Ornilock Steel 16.5mm 100 Degree Countersunk Head Rivet
$45.99
Quantity: 1
Claim Your Seller Account
Ornilock Steel 16.5mm 100 Degree Countersunk Head Rivet
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

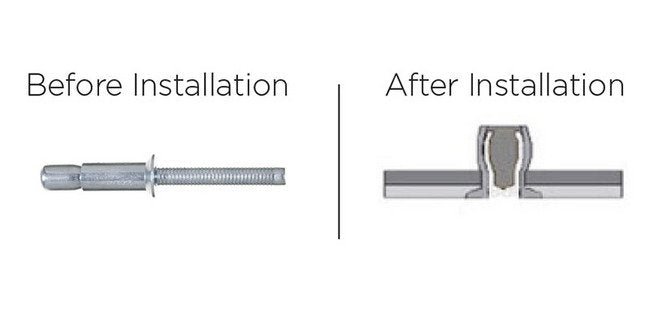

The Ornilock Steel 16.5mm 100 Degree Countersunk Head Rivet is a robust fastening solution designed for structural applications. Made of low carbon steel with a zinc-plated chromium VI free finish, it offers exceptional hole-fill capabilities, making it perfect for oversized, irregular, or misaligned holes. With a nominal shear force of 630 kgf and a nominal tensile force of 545 kgf, this rivet ensures secure and stable connections. Ideal for renewable energy applications like solar frames, this multi-grip rivet features an internal-locking system for added strength and reliability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications Renewable Energy Application
Solar FramesThis extra-large diameter, Ornilock, fastener is a multi-grip, structural rivet that features an internal-locking system making it ideal for large, irregular or misaligned holes.
Nominal Dimensions Body Length
16.5 mm | 0.650 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
4.9 to 5.1 mm | 0.192 to 0.200 in
Nominal Dimensions Head Diameter
8.6 mm | 0.339 in
Nominal Dimensions Head Thickness
1.80 mm | 0.071 in
Nominal Dimensions Mandrel Diameter
3.0 mm | 0.118 in
Nominal Dimensions Maximum Grip Range
12.7 mm | 0.500 in
Nominal Dimensions Minimum Grip Range
7.8 mm | 0.307 in
Nominal Forces Nominal Shear Force
630 kgf | 1386 lbf
Nominal Forces Nominal Tensile Force
545 kgf | 1199 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Ornilock | Ornit
Technical Specs Carton Quantity
3000
Technical Specs Head Style
100 Degree Countersunk
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Medium Carbon Steel
