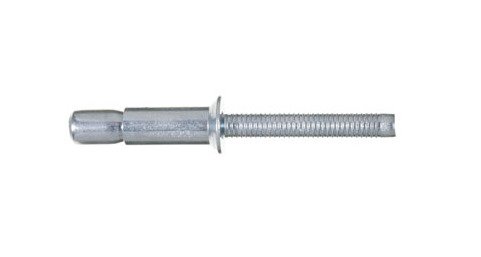

Ornilock Steel 16.7mm Countersunk Head Rivet
Ornilock Steel 16.7mm Countersunk Head Rivet
SKU:ORN-8efbd7
High-quality Ornilock Steel 16.7mm Countersunk Head Rivet for structural applications, ideal for oversized holes, with 100-degree head and zinc finish.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Ornilock Steel 16.7mm Countersunk Head Rivet
$34.99
Quantity: 1
Claim Your Seller Account
Ornilock Steel 16.7mm Countersunk Head Rivet
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ornilock Steel 16.7mm Countersunk Head Rivet is a high-quality, low carbon steel fastener designed for structural applications in oversized, irregular, or misaligned holes. With a 100-degree countersunk head and zinc plated chromium finish, this rivet offers exceptional hole-fill capabilities and a flush break feature. Ideal for hinges, axis, and locking systems, it provides a secure, internal-locking system for heavy-duty use. With nominal shear force of 1250 kgf and nominal tensile force of 1000 kgf, this rivet ensures reliable performance in demanding conditions.
Product Specifications
Applications Renewable Energy Application
Solar FramesThis extra-large diameter, Ornilock, fastener is a multi-grip, structural rivet that features an internal-locking system making it ideal for large, irregular or misaligned holes.
Nominal Dimensions Body Length
16.7 mm | 0.657 in
Nominal Dimensions Diameter
6.5 mm | 1/4 in
Nominal Dimensions Drillhole Size
6.62 to 6.9 mm | 0.260 to 0.271 in
Nominal Dimensions Head Diameter
10.0 mm | 0.394 in
Nominal Dimensions Head Thickness
2.00 mm | 0.079 in
Nominal Dimensions Mandrel Diameter
4.0 mm | 0.157 in
Nominal Dimensions Maximum Grip Range
12.1 mm | 0.476 in
Nominal Dimensions Minimum Grip Range
4.1 mm | 0.161 in
Nominal Forces Nominal Shear Force
1250 kgf | 2750 lbf
Nominal Forces Nominal Tensile Force
1000 kgf | 2200 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Ornilock | Ornit
Technical Specs Carton Quantity
2000
Technical Specs Head Style
100 Degree Countersunk
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Medium Carbon Steel
