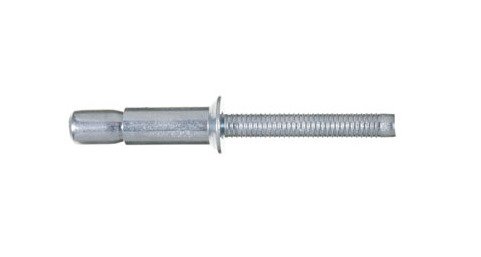

Ornilock Steel 23.0mm 100 Degree Countersunk Head Rivet
Ornilock Steel 23.0mm 100 Degree Countersunk Head Rivet
SKU:ORN-dbb918
High-quality Ornilock Steel rivet for structural applications. Excellent hole-fill capabilities, ideal for oversized or irregular holes. Strong and reliable fastening.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Ornilock Steel 23.0mm 100 Degree Countersunk Head Rivet
$29.99
Quantity: 1
Claim Your Seller Account
Ornilock Steel 23.0mm 100 Degree Countersunk Head Rivet
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

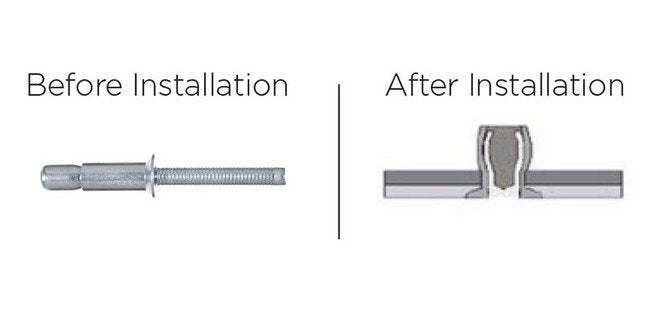

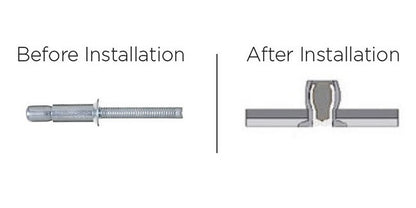

The Ornilock Steel 23.0mm 100 Degree Countersunk Head Rivet is a high-quality fastening solution designed for structural applications. Made of low carbon steel with a zinc-plated chromium finish, this rivet offers excellent hole-fill capabilities, perfect for oversized, irregular, or misaligned holes. With a nominal shear force of 1250 kgf and a nominal tensile force of 1000 kgf, it provides strong and reliable fastening. Ideal for hinges, axes, locking systems, solar frames, and renewable energy applications, this rivet meets stringent industry standards for durability and performance.
Product Specifications
Applications Renewable Energy Application
Solar FramesThis extra-large diameter, Ornilock, fastener is a multi-grip, structural rivet that features an internal-locking system making it ideal for large, irregular or misaligned holes.
Nominal Dimensions Body Length
23.0 mm | 0.906 in
Nominal Dimensions Diameter
6.5 mm | 1/4 in
Nominal Dimensions Drillhole Size
6.62 to 6.9 mm | 0.260 to 0.271 in
Nominal Dimensions Head Diameter
10.0 mm | 0.394 in
Nominal Dimensions Head Thickness
2.00 mm | 0.079 in
Nominal Dimensions Mandrel Diameter
4.0 mm | 0.157 in
Nominal Dimensions Maximum Grip Range
18.4 mm | 0.724 in
Nominal Dimensions Minimum Grip Range
10.6 mm | 0.417 in
Nominal Forces Nominal Shear Force
1250 kgf | 2750 lbf
Nominal Forces Nominal Tensile Force
1000 kgf | 2200 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Ornilock | Ornit
Technical Specs Carton Quantity
1500
Technical Specs Head Style
100 Degree Countersunk
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Medium Carbon Steel
