Ornilock Steel Protruding Head Rivet - 4.8mm x 14.5mm
Ornilock Steel Protruding Head Rivet - 4.8mm x 14.5mm
SKU:ORN-20447f
Ornilock steel rivet - 4.8mm x 14.5mm: Superior strength, corrosion resistance, ideal for oversized holes.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Ornilock Steel Protruding Head Rivet - 4.8mm x 14.5mm
$39.99
Quantity: 1
Claim Your Seller Account
Ornilock Steel Protruding Head Rivet - 4.8mm x 14.5mm
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

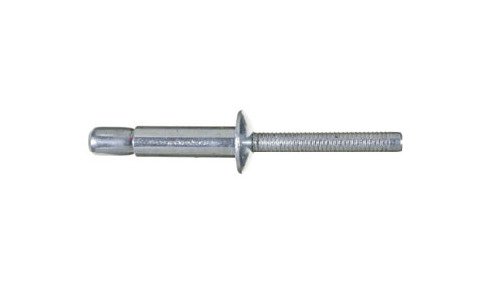

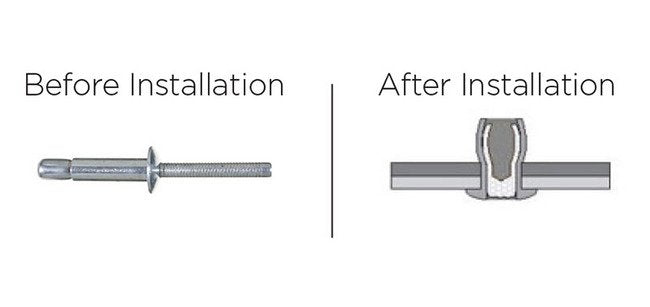

Experience superior hole-fill capabilities with the Ornilock 4.8mm Steel Protruding Head Rivet. Constructed with low carbon steel and zinc-plated chromium VI free passivation, this rivet ensures exceptional strength and corrosion resistance. Featuring a flush break and an internal-locking system, it is ideal for oversized, irregular, or misaligned holes in side frames, front frames, hinges, axes, and locking systems.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Nominal Dimensions Body Length
14.5 mm | 0.571 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
4.9 to 5.1 mm | 0.193 to 0.201 in
Nominal Dimensions Head Diameter
9.8 mm | 0.386 in
Nominal Dimensions Head Thickness
2.1 mm | 0.083 in
Nominal Dimensions Mandrel Diameter
3.0 mm | 0.118 in
Nominal Dimensions Maximum Grip Range
11.1 mm | 0.437 in
Nominal Dimensions Minimum Grip Range
1.6 mm | 0.063 in
Nominal Forces Nominal Shear Force
630 kgf | 1386 lbf
Nominal Forces Nominal Tensile Force
545 kgf | 1199 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free Passivation
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Ornilock | Ornit
Technical Specs Carton Quantity
3000
Technical Specs Head Style
Protruding
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free Passivation
Technical Specs Mandrel Material
Medium Carbon Steel
