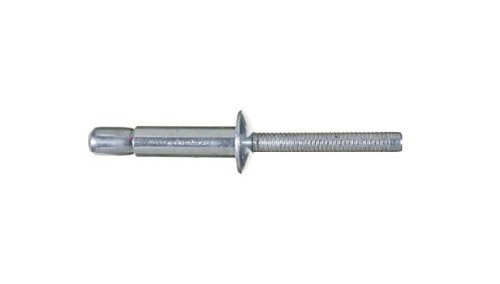

Ornilock Steel Protruding Head Rivet 6.5mm x 20.5mm
Ornilock Steel Protruding Head Rivet 6.5mm x 20.5mm
SKU:ORN-201423
High-quality Ornilock Steel Rivet with 6.5mm diameter and 20.5mm length, ideal for structural applications. Low carbon steel construction with zinc plating.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Ornilock Steel Protruding Head Rivet 6.5mm x 20.5mm
$59.99
Quantity: 1
Claim Your Seller Account
Ornilock Steel Protruding Head Rivet 6.5mm x 20.5mm
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

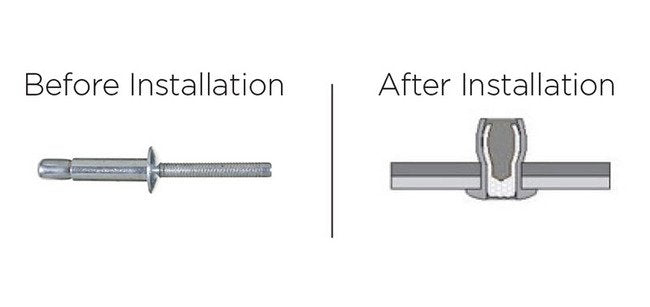

The Ornilock Steel Protruding Head Rivet is a high-quality fastener designed for structural applications, offering excellent hole-fill capabilities for oversized or irregular holes. Made of low carbon steel with zinc plated chromium VI-free passivation, this rivet features a protruding head style and an internal-locking system for secure fastening. With a diameter of 6.5mm and a body length of 20.5mm, it provides a nominal shear force of 1250 kgf and a nominal tensile force of 1000 kgf, ensuring reliable performance in demanding environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Nominal Dimensions Body Length
20.5 mm | 0.807 in
Nominal Dimensions Diameter
6.5 mm | 1/4 in
Nominal Dimensions Drillhole Size
6.62 to 6.9 mm | 0.261 to 0.272 in
Nominal Dimensions Head Diameter
13.0 mm | 0.512 in
Nominal Dimensions Head Thickness
2.8 mm | 0.110 in
Nominal Dimensions Mandrel Diameter
4.0 mm | 0.157 in
Nominal Dimensions Maximum Grip Range
15.9 mm | 0.626 in
Nominal Dimensions Minimum Grip Range
8.9 mm | 0.350 in
Nominal Forces Nominal Shear Force
1250 kgf | 2750 lbf
Nominal Forces Nominal Tensile Force
1000 kgf | 2200 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free Passivation
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Ornilock | Ornit
Technical Specs Carton Quantity
1500
Technical Specs Head Style
Protruding
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free Passivation
Technical Specs Mandrel Material
Medium Carbon Steel
