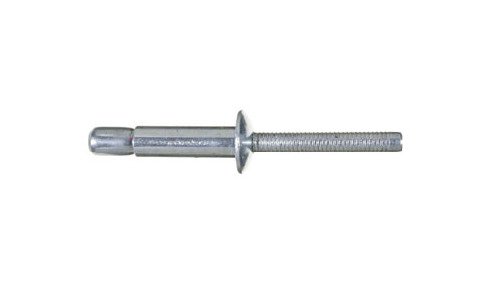

Ornilock Steel Protruding Head Rivet - 7.8mm Diameter, 21.0mm Body Length
Ornilock Steel Protruding Head Rivet - 7.8mm Diameter, 21.0mm Body Length
SKU:ORN-eaede1
Durable Ornilock Steel Rivet for structural applications with superior hole-fill abilities and high strength. Ideal for solar frames and renewables.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Ornilock Steel Protruding Head Rivet - 7.8mm Diameter, 21.0mm Body Length
$45.99
Quantity: 1
Claim Your Seller Account
Ornilock Steel Protruding Head Rivet - 7.8mm Diameter, 21.0mm Body Length
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

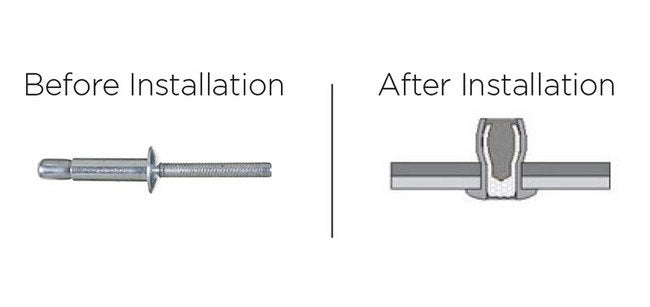

The Ornilock Steel Protruding Head Rivet is a versatile fastener designed for structural applications, offering excellent hole-fill capabilities for oversized, irregular, or misaligned holes. Crafted with low carbon steel and zinc-plated chromium VI free passivation, this rivet ensures durability and corrosion resistance. With a nominal shear force of 1600 kgf and a nominal tensile force of 1000 kgf, it provides reliable strength for various installations. Ideal for solar frames and other renewable energy applications, this rivet features an internal-locking system and a multi-grip design, making it suitable for large-scale projects that demand precision and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications Renewable Energy Application
Solar FramesThis extra-large diameter, Ornilock, fastener is a multi-grip, structural rivet that features an internal-locking system making it ideal for large, irregular or misaligned holes.
Nominal Dimensions Body Length
21.0 mm | 0.827 in
Nominal Dimensions Diameter
7.8 mm | 5/16 in
Nominal Dimensions Drillhole Size
8.0 to 8.3 mm | 0.315 to 0.327 in
Nominal Dimensions Head Diameter
16 mm | 0.630 in
Nominal Dimensions Head Thickness
3.5 mm | 0.140 in
Nominal Dimensions Mandrel Diameter
5.10 mm | 0.200 in
Nominal Dimensions Maximum Grip Range
14.5 mm | 0.571 in
Nominal Dimensions Minimum Grip Range
3.0 mm | 0.118 in
Nominal Forces Nominal Shear Force
1600 kgf | 3520 lbf
Nominal Forces Nominal Tensile Force
1000 kgf | 2205 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free Passivation
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Ornilock | Ornit
Technical Specs Carton Quantity
1000
Technical Specs Head Style
Protruding
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free Passivation
Technical Specs Mandrel Material
Medium Carbon Steel
