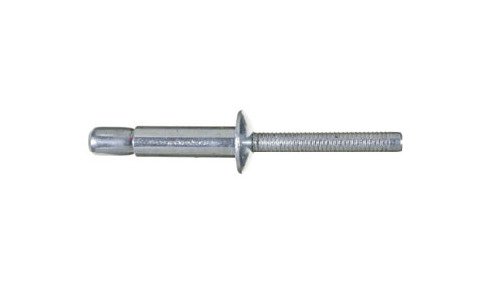

Ornilock Steel Protruding Head Rivet 9.8mm x 21.0mm
Ornilock Steel Protruding Head Rivet 9.8mm x 21.0mm
SKU:ORN-f94c19
High-quality Ornilock Steel Protruding Head Rivet for structural applications, featuring multi-grip design and superior durability.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Ornilock Steel Protruding Head Rivet 9.8mm x 21.0mm
$39.99
Quantity: 1
Claim Your Seller Account
Ornilock Steel Protruding Head Rivet 9.8mm x 21.0mm
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

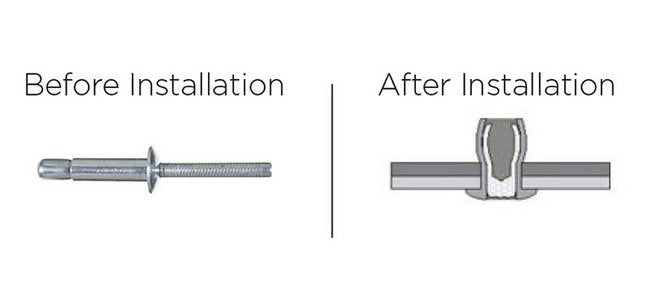

The Ornilock Steel Protruding Head Rivet is a high-quality fastening solution designed for structural applications in industries such as renewable energy. Made of low carbon steel with zinc plated chromium VI free passivation, this rivet ensures durability and corrosion resistance. With a nominal shear force of 2540 kgf and tensile force of 1815 kgf, it offers reliable performance. The protruding head style and multi-grip feature make it ideal for oversized, irregular, or misaligned holes, providing a secure and flush break. Suitable for solar frames and other large-scale projects, this rivet meets stringent industry standards and ensures long-lasting stability.
Product Specifications
Applications Renewable Energy Application
Solar FramesThis extra-large diameter, Ornilock, fastener is a multi-grip, structural rivet that features an internal-locking system making it ideal for large, irregular or misaligned holes.
Nominal Dimensions Body Length
21.0 mm | 0.827 in
Nominal Dimensions Diameter
9.8 mm | 3/8 in
Nominal Dimensions Drillhole Size
10.0 to 10.4 mm | 0.394 to 0.409 in
Nominal Dimensions Head Diameter
19.5 mm | 0.770 in
Nominal Dimensions Head Thickness
4.40 mm | 0.170 in
Nominal Dimensions Mandrel Diameter
5.8 mm | 0.230 in
Nominal Dimensions Maximum Grip Range
14.5 mm | 0.571 in
Nominal Dimensions Minimum Grip Range
3.5 mm | 0.138 in
Nominal Forces Nominal Shear Force
2540 kgf | 5601 lbf
Nominal Forces Nominal Tensile Force
1815 kgf | 4002 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free Passivation
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Ornilock | Ornit
Technical Specs Carton Quantity
500
Technical Specs Head Style
Protruding
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free Passivation
Technical Specs Mandrel Material
Medium Carbon Steel
