Ornit 0.5mm Minimum Grip Size Split Rivet Nut - Thread Size M6 x 1.0

Name: Ornit 0.5mm Minimum Grip Size Split Rivet Nut - Thread Size M6 x 1.0
Brand: Ornit USA
SKU: IMP-77595b
Price: 12.99 USD
Availability: OutOfStock

SKU:IMP-77595b

Premium Ornit 0.5mm Split Rivet Nut - High-Quality Steel, Zinc Finish, Versatile Dimensions

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

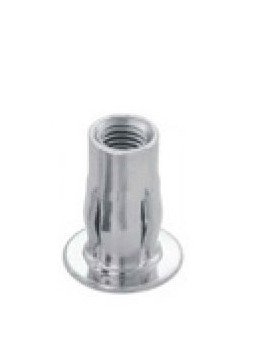

Experience superior fastening with the Ornit 0.5mm Minimum Grip Size Split Rivet Nut. Made from high-quality steel with a protective zinc finish, this rivet nut ensures durability and corrosion resistance. With a minimum grip size of 0.5mm and dimensions meeting precise standards, including various hole sizes and dimensions, it offers versatility for different applications. Ideal for industrial and government use, this rivet nut is also available in stainless steel and aluminum variants, catering to diverse project requirements.

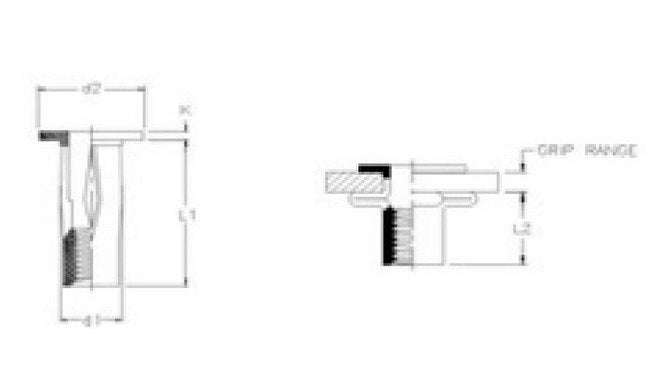

Product Specifications

Dimensions Dimension D1

9.35 mm | 9.80 mm

Dimensions Dimension D2

15.49 mm | 16.38 mm

Dimensions Dimension K

1.36 mm | 1.60 mm

Dimensions Dimension L1

25.02 mm | 25.78 mm

Dimensions Maximum Grip Size

7.10 mm

Dimensions Maximum Hole Size

10.15 mm

Dimensions Minimum Grip Size

0.50 mm

Dimensions Minimum Hole Size

10.00 mm

Dimensions Thread Size

M6 x 1.0

Note Note

Stainless Steel & Aluminum are available.

Technical Specs Brands

Ornit

Technical Specs Finish

Zinc

Technical Specs Material

Steel

Technical Specs Maximum Dimension L2

13.21 mm

Ornit 0.5mm Minimum Grip Size Split Rivet Nut - Thread Size M6 x 1.0
