Ornit 1/4 Inch Aluminum Flanged Collar
Ornit 1/4 Inch Aluminum Flanged Collar
SKU:FLA-fee699
High-quality 1/4 Inch Aluminum Flanged Collar for precise and secure fastening. Durable, corrosion-resistant, and compliant with industry standards.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Ornit 1/4 Inch Aluminum Flanged Collar
$45.99
Quantity: 1
Claim Your Seller Account
Ornit 1/4 Inch Aluminum Flanged Collar
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

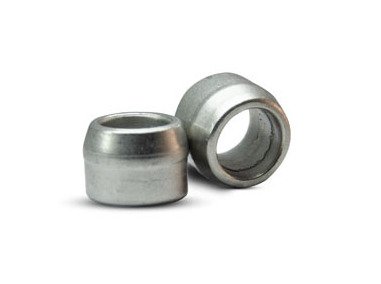

The Ornit 1/4 Inch Aluminum Flanged Collar is meticulously designed for precision fastening applications. Crafted from AL-6061 Aluminum with a natural finish, this collar exhibits exceptional durability and corrosion resistance. The flanged head shape ensures secure attachment, with a diameter range of 0.256 to 0.267 inches. Weighing only 1.37 kg per 1000 pieces, these collars provide a reliable and efficient solution for various industrial needs, meeting stringent quality standards.

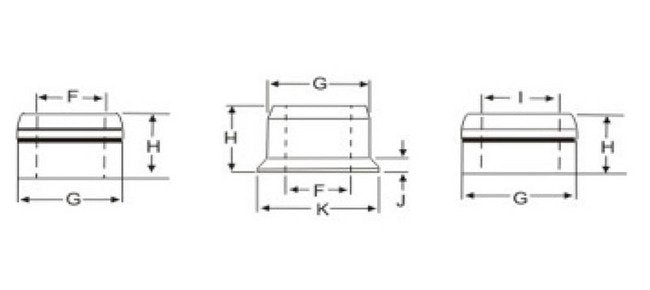

Product Specifications
Note Note
When using Flange collars, and "J" dimension to thickness of material being fastened to determine grip number.
Technical Specs Brands
Ornit
Technical Specs Coating
Zinc
Technical Specs Diameter
1/4 in
Technical Specs Diameter F
0.256 to 0.267 in
Technical Specs Finish
Natural
Technical Specs Head Shape
Flanged
Technical Specs Length H
0.379 - 0.349 in
Technical Specs Material
AL-6061 Aluminum (Annealing)
Technical Specs Maximum Dimension J
0.078 - 0.047 in
Technical Specs Maximum Dimension K
0.516 - 0.484 in
Technical Specs Maximum Hole Diameter
0.409 in
Technical Specs Minimum Hole Diameter
0.402 in
Technical Specs Weight Per 1000 Pieces
1.37 kg
