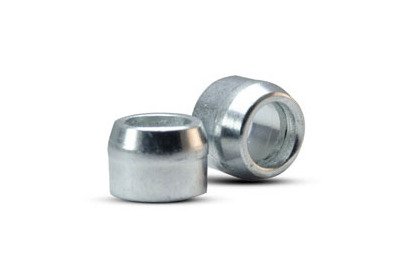

Ornit 1/4 Inch Flanged Steel Collar
Ornit 1/4 Inch Flanged Steel Collar
SKU:FLA-4c9db3
Secure your fastenings with Ornit 1/4 Inch Flanged Steel Collar. Carbon Steel c-1008, Zinc finish, precise dimensions for industrial use.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Ornit 1/4 Inch Flanged Steel Collar
$29.99
Quantity: 1
Claim Your Seller Account
Ornit 1/4 Inch Flanged Steel Collar
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ornit 1/4 Inch Flanged Steel Collar is a reliable and durable fastening solution crafted from Carbon Steel c-1008 with a Zinc finish. With a precise diameter of 1/4 inch, this collar ensures a secure grip with a maximum hole diameter of 0.409 inches. Its flanged head shape and zinc coating provide enhanced stability and corrosion resistance. Ideal for industrial applications, the collar's dimensions and weight per 1000 pieces meet strict standards ensuring quality and performance. Compliant with Federal procurement standards and suitable for various GSA and DLA requirements.
Product Specifications
Note Note

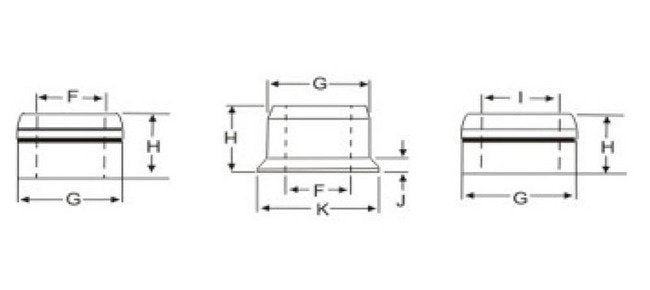

When using Flange collars, and "J" dimension to thickness of material being fastened to determine grip number.
Technical Specs Brands
Ornit
Technical Specs Coating
Zinc
Technical Specs Diameter
1/4 in
Technical Specs Diameter F
0.256 to 0.267 in
Technical Specs Finish
Zinc
Technical Specs Head Shape
Flanged
Technical Specs Length H
0.379 - 0.349 in
Technical Specs Material
Carbon Steel c-1008
Technical Specs Maximum Dimension J
0.078 - 0.047 in
Technical Specs Maximum Dimension K
0.516 - 0.484 in
Technical Specs Maximum Hole Diameter
0.409 in
Technical Specs Minimum Hole Diameter
0.402 in
Technical Specs Weight Per 1000 Pieces
4.03 kg
