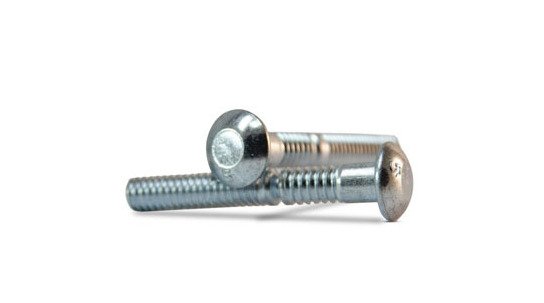

Ornit 1.904" Aluminum (2024) Standard Brazier Head Lock Bolt
Ornit 1.904" Aluminum (2024) Standard Brazier Head Lock Bolt
SKU:STA-481bb0
Shop the Ornit Aluminum Standard Brazier Head Lock Bolt for reliable, secure fastening in various applications.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
Ornit 1.904" Aluminum (2024) Standard Brazier Head Lock Bolt
$14.99
Quantity: 1
Claim Your Seller Account
Ornit 1.904" Aluminum (2024) Standard Brazier Head Lock Bolt
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ornit 1.904-inch Aluminum (2024) Standard Brazier Head Lock Bolt is designed for precision and durability. With a maximum mandrel length of 1.904 inches and a zinc finish, this bolt offers reliable fastening in a range of applications. Meeting stringent industry standards, including FAR compliance factors and DLA standards, this bolt ensures secure connections and long-lasting performance. Its aluminum construction provides strength and corrosion resistance, making it ideal for both consumer and institutional procurement needs.
Product Specifications
Dimensions Diameter
3/16 in
Dimensions Dimension A
0.191 to 0.195 in
Dimensions Maximum Grip Range
0.438 in
Dimensions Maximum Head Diameter
0.394 in
Dimensions Maximum Hole Diameter
0.203 in
Dimensions Maximum Hole Size
0.203 in
Dimensions Maximum Length
2.029 in
Dimensions Maximum Mandrel Length
1.904 in
Dimensions Minimum Grip Range
0.563 in
Dimensions Minimum Head Diameter
0.356 in
Dimensions Minimum Hole Diameter
0.193 in
Dimensions Minimum Length
1.892 in
Dimensions Minimum Mandrel Length
1.779 in
Dimensions Minimum Shear Strength
476 in
Dimensions Minimum Tensile Strength
454 in
Dimensions Nominal Drill Side
0.198 in
Dimensions Nominal Head Diameter
0.375 in
Dimensions Nominal Mandrel Length
1.842 in
Technical Specs Brands
Ornit
Technical Specs Finish
Zinc
Technical Specs Head B
0.356 to 0.394 in
Technical Specs Head C
0.113 to 0.125 in
Technical Specs Head Shape
Braizier Head
Technical Specs Material
Aluminum (2024)
