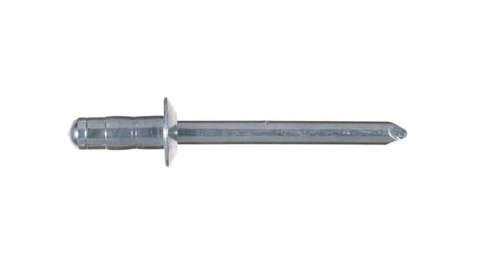

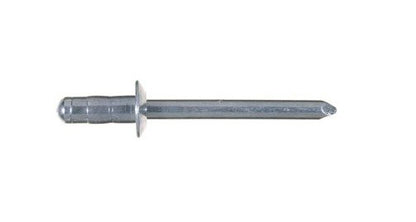

Ornit 10.3mm U-Fix Dome Head Rivet
Ornit 10.3mm U-Fix Dome Head Rivet
SKU:UFI-c1c3fe
Versatile Ornit 10.3mm Dome Head Rivet w/ Zinc Finish, Ideal for Automotive & Trailer Apps
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Ornit 10.3mm U-Fix Dome Head Rivet
$39.99
Quantity: 1
Claim Your Seller Account
Ornit 10.3mm U-Fix Dome Head Rivet
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ornit 10.3mm U-Fix All Steel Dome Head Rivet is a versatile, purpose-built fastener designed for various applications. With a low carbon steel body and zinc plated chromium VI free finish, it offers excellent multi-grip functionality. This rivet is ideal for securing components in automotive interiors, trailers, and cabins. It features a shearing force of 367 kgf and a tensile force of 340 kgf, ensuring reliable performance. The Ornit rivet meets industry standards for durability and strength, making it a top choice for institutional buyers seeking quality fastening solutions.
Product Specifications
Applications Automotive Application
InteriorThe U-Fix is a highly versatile purpose-built fastener, featuring an excellent multi-grip function ideal for a variety of purposes. Commonly used to secure components within the vehicle.
Nominal Dimensions Body Length
10.3 mm | 0.406 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
4.9 to 5.0 mm | 0.192 to 0.196 in
Nominal Dimensions Head Diameter
9.8 mm | 0.386 in
Nominal Dimensions Head Thickness
1.75 mm | 0.069 in
Nominal Dimensions Mandrel Diameter
3.38 mm | 0.133 in
Nominal Dimensions Maximum Grip Range
4.8 mm | 0.189 in
Nominal Dimensions Minimum Grip Range
1.2 mm | 0.047 in
Nominal Forces Nominal Shear Force
367 kgf | 808 lbf
Nominal Forces Nominal Tensile Force
340 kgf | 748 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
5000
Technical Specs Head Style
Dome
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Carbon Steel
