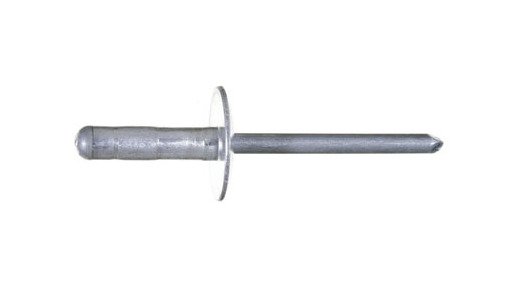

Ornit 16.9mm U-Fix Aluminum Rivet
Ornit 16.9mm U-Fix Aluminum Rivet
SKU:UFI-c4165d
Versatile Ornit 16.9mm aluminum rivet for secure fastening in automotive and trailer applications
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Ornit 16.9mm U-Fix Aluminum Rivet
$29.99
Quantity: 1
Claim Your Seller Account
Ornit 16.9mm U-Fix Aluminum Rivet
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

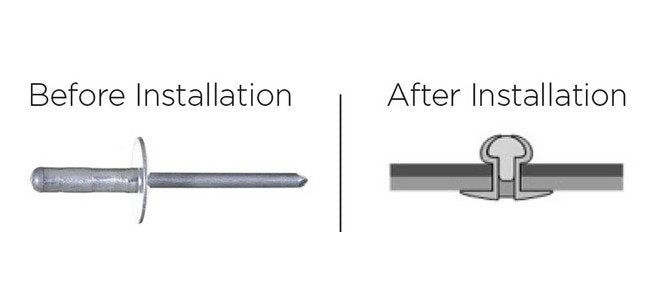

The Ornit 16.9mm U-Fix Aluminum Rivet is a high-quality, purpose-built fastener designed for versatility and multi-grip functionality. With an aluminum alloy body and mandrel, this rivet offers excellent strength and durability. It features an extra-large head for easy application and is perfect for securing rails, interior components in automotive applications, and trailer accessories. With a nominal shear force of 100kgf and a nominal tensile force of 150kgf, this rivet ensures reliable fastening in various settings.
Product Specifications
Applications Automotive Application
InteriorThe U-Fix is a highly versatile purpose-built fastener, featuring an excellent multi-grip function ideal for a variety of purposes. Commonly used to secure components within the vehicle.
Nominal Dimensions Body Length
16.9 mm | 0.665 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
4.9 mm | 0.193 in
Nominal Dimensions Head Diameter
15.85 mm | 0.624 in
Nominal Dimensions Head Thickness
1.75 mm | 0.069 in
Nominal Dimensions Mandrel Diameter
2.9 mm | 0.114 in
Nominal Dimensions Maximum Grip Range
12.7 mm | 0.500 in
Nominal Dimensions Minimum Grip Range
6.4 mm | 0.252 in
Nominal Forces Nominal Shear Force
100 kgf | 220 lbf
Nominal Forces Nominal Tensile Force
150 kgf | 330 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 1.0
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
2500
Technical Specs Head Style
Extra Large
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Aluminum Alloy ALmg 5.0
