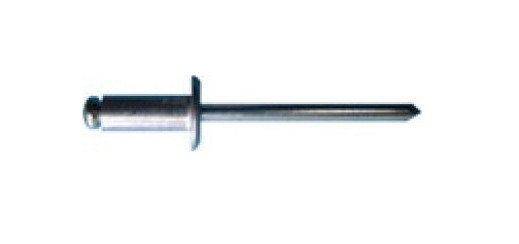

Ornit 2.9mm Dome Blind Rivet
Ornit 2.9mm Dome Blind Rivet
SKU:OPE-aa59d3
High-quality Ornit 2.9mm Dome Blind Rivet for secure and reliable fastening in various applications. Compliant with industry standards.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Ornit 2.9mm Dome Blind Rivet
$39.99
Quantity: 1
Claim Your Seller Account
Ornit 2.9mm Dome Blind Rivet
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ornit 2.9mm Dome Blind Rivet is designed for superior fastening performance. With a body length of 4.5mm and a durable aluminum alloy construction, it offers reliability and strength. The rivet's dome head style adds a professional finish to applications. Compliant with industry standards, this rivet provides a secure grip range and offers high shear and tensile forces, making it ideal for a wide range of projects.
Product Specifications
Nominal Dimensions Body Length
4.5 mm | 0.177 in
Nominal Dimensions Diameter
2.9 mm
Nominal Dimensions Drillhole Size
3.1 mm | 0.122 in
Nominal Dimensions Head Diameter
6.3 mm | 0.248 in
Nominal Dimensions Head Thickness
0.90 mm | 0.035 in
Nominal Dimensions Mandrel Diameter
1.81 mm | 0.071 in
Nominal Dimensions Maximum Grip Range
1.5 mm | 0.059 in
Nominal Dimensions Minimum Grip Range
0.3 mm | 0.012 in
Nominal Forces Nominal Shear Force
70 kgf | 154 lbf
Nominal Forces Nominal Tensile Force
85 kgf | 187 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (2.5 mg) to AA 5052
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
10000
Technical Specs Head Style
Dome
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel SAE 1006-1022
