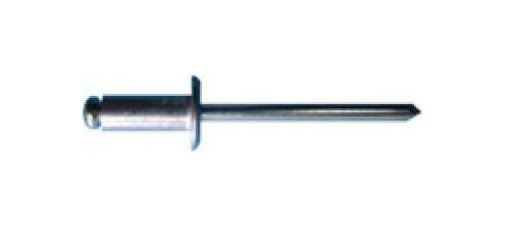

Ornit 2.9mm x 6.0mm Dome Blind Rivet
Ornit 2.9mm x 6.0mm Dome Blind Rivet
SKU:OPE-4e421a
High-quality Ornit 2.9mm x 6.0mm Dome Blind Rivet for strong and durable fastenings in industrial applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Ornit 2.9mm x 6.0mm Dome Blind Rivet
$129.99
Quantity: 1
Claim Your Seller Account
Ornit 2.9mm x 6.0mm Dome Blind Rivet
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

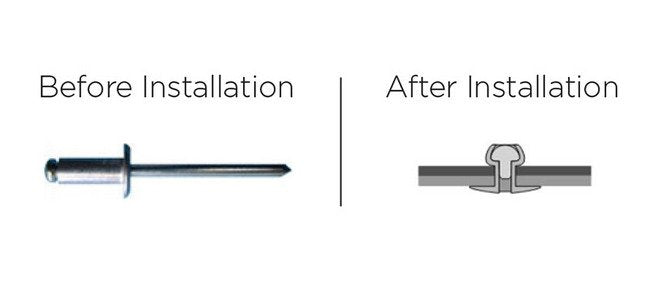

The Ornit 2.9mm Diameter and 6.0mm Body Length Open End Dome Blind Rivet is a reliable fastening solution designed for industrial applications where strength and durability are paramount. Constructed with high-quality Aluminum Alloy (2.5 mg) to AA 5052 body and a Zinc Plated Chromium (Cr) VI Free low carbon steel SAE 1006-1022 mandrel, this rivet offers excellent shear force resistance of 70 kgf and tensile force strength of 85 kgf. With precise nominal dimensions and a grip range from 0.5mm to 3.0mm, this rivet ensures secure and lasting fastenings. Ideal for use in automotive, aerospace, and construction industries, meeting stringent quality and performance standards.
Product Specifications
Nominal Dimensions Body Length
6.0 mm | 0.236 in
Nominal Dimensions Diameter
2.9 mm
Nominal Dimensions Drillhole Size
3.1 mm | 0.122 in
Nominal Dimensions Head Diameter
6.3 mm | 0.248 in
Nominal Dimensions Head Thickness
0.90 mm | 0.035 in
Nominal Dimensions Mandrel Diameter
1.81 mm | 0.071 in
Nominal Dimensions Maximum Grip Range
3.0 mm | 0.118 in
Nominal Dimensions Minimum Grip Range
0.5 mm | 0.020 in
Nominal Forces Nominal Shear Force
70 kgf | 154 lbf
Nominal Forces Nominal Tensile Force
85 kgf | 187 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (2.5 mg) to AA 5052
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
10000
Technical Specs Head Style
Dome
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel SAE 1006-1022
