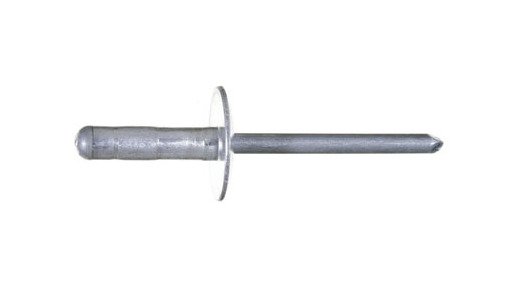

Ornit 24.8mm Aluminum/Aluminum X-Large Head Rivet
Ornit 24.8mm Aluminum/Aluminum X-Large Head Rivet
SKU:UFI-ce33fb
Versatile Ornit 24.8mm Aluminum Rivet for secure, multi-purpose fastening in automotive and trailer applications.
Regular price
$35.99
Regular price
Sale price
$35.99
Unit price
per
Initiate Order
Ornit 24.8mm Aluminum/Aluminum X-Large Head Rivet
$35.99
Quantity: 1
Claim Your Seller Account
Ornit 24.8mm Aluminum/Aluminum X-Large Head Rivet
$35.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ornit 24.8mm Aluminum/Aluminum X-Large Head Rivet is a versatile and purpose-built fastener designed for a range of applications. With a body length of 24.8mm and boasting an excellent multi-grip function, this rivet excels in securing rails, interior components in vehicle cabins, and other trailer applications. Made of high-quality Aluminum Alloy ALmg 1.0 for the body and Aluminum Alloy ALmg 5.0 for the mandrel, this rivet offers exceptional strength. With a nominal shear force of 100 kgf and a nominal tensile force of 150 kgf, it ensures reliable fastening in demanding environments. Ideal for automotive, trailer, and cabin applications.
Product Specifications
Applications Automotive Application
InteriorThe U-Fix is a highly versatile purpose-built fastener, featuring an excellent multi-grip function ideal for a variety of purposes. Commonly used to secure components within the vehicle.
Nominal Dimensions Body Length
24.8 mm | 0.976 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
4.9 mm | 0.193 in
Nominal Dimensions Head Diameter
15.85 mm | 0.624 in
Nominal Dimensions Head Thickness
1.75 mm | 0.069 in
Nominal Dimensions Mandrel Diameter
2.9 mm | 0.114 in
Nominal Dimensions Maximum Grip Range
19.8 mm | 0.780 in
Nominal Dimensions Minimum Grip Range
12.7 mm | 0.500 in
Nominal Forces Nominal Shear Force
100 kgf | 220 lbf
Nominal Forces Nominal Tensile Force
150 kgf | 330 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 1.0
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
2000
Technical Specs Head Style
Extra Large
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Aluminum Alloy ALmg 5.0
