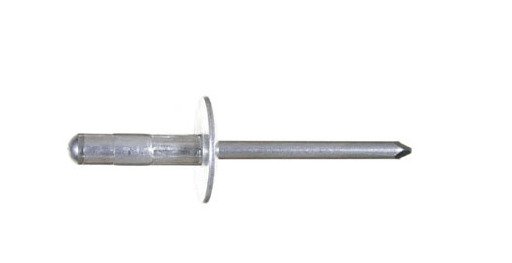

Ornit 3.2mm Aluminum/Stainless Steel X-Large Head Rivet
Ornit 3.2mm Aluminum/Stainless Steel X-Large Head Rivet
SKU:UFI-6e7fe2
Enhance projects with the Ornit 3.2mm Aluminum/Stainless Steel Rivet, ideal for secure and durable fastening. Meets industry standards.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Ornit 3.2mm Aluminum/Stainless Steel X-Large Head Rivet
$99.99
Quantity: 1
Claim Your Seller Account
Ornit 3.2mm Aluminum/Stainless Steel X-Large Head Rivet
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

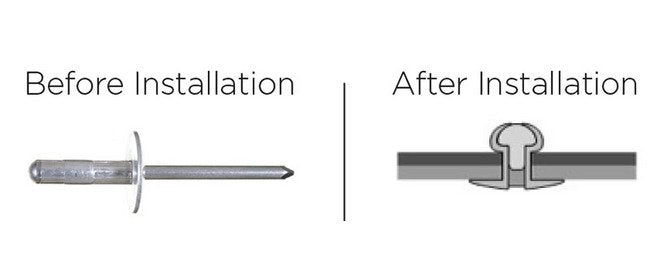

Upgrade your fastening solutions with the Ornit 3.2mm Aluminum/Stainless Steel X-Large Head Rivet. Crafted from durable Aluminum Alloy ALmg 2.5 and Stainless Steel AISI 430/434 mandrel, it offers superior strength and corrosion resistance. The extra-large head design ensures secure fastening, meeting rigorous industry standards like Federal/DoD procurement and FAR compliance.
Product Specifications
Nominal Dimensions Body Length
8.0 mm | 0.315 in
Nominal Dimensions Diameter
3.2 mm | 1/8 in
Nominal Dimensions Drillhole Size
3.3 mm | 0.130 in
Nominal Dimensions Head Diameter
9.5 mm | 0.374 in
Nominal Dimensions Head Thickness
1.20 mm | 0.047 in
Nominal Dimensions Mandrel Diameter
1.81 mm | 0.071 in
Nominal Dimensions Maximum Grip Range
4.8 mm | 0.189 in
Nominal Dimensions Minimum Grip Range
0.8 mm | 0.031 in
Nominal Forces Nominal Shear Force
75 kgf | 165 lbf
Nominal Forces Nominal Tensile Force
104 kgf | 230 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
8000
Technical Specs Head Style
Extra Large
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Stainless Steel AISI 430/434 or Equivalent
