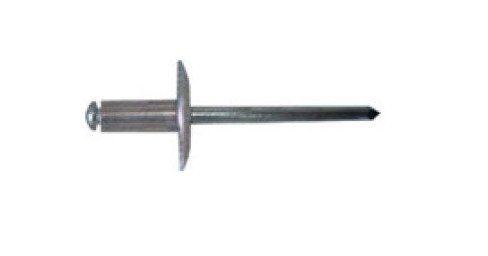

Ornit 3.2mm Large Blind Rivet
Ornit 3.2mm Large Blind Rivet
SKU:OPE-0a8f85
Secure and durable 3.2mm Large Blind Rivet for industrial applications.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Ornit 3.2mm Large Blind Rivet
$45.99
Quantity: 1
Claim Your Seller Account
Ornit 3.2mm Large Blind Rivet
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ornit 3.2mm Large Blind Rivet is a reliable fastening solution designed for industrial applications. With a body length of 16.0mm, this rivet offers a secure grip range from 10.5mm to 12.5mm. Manufactured with Aluminum Alloy (AA 5052) and a Low Carbon Steel SAE 1006-1022 mandrel, it provides excellent shear force of 75 kgf and tensile force of 100 kgf. The zinc-plated chromium finish ensures corrosion resistance, making it ideal for both indoor and outdoor use.
Product Specifications
Nominal Dimensions Body Length
16.0 mm | 0.630 in
Nominal Dimensions Diameter
3.2 mm
Nominal Dimensions Drillhole Size
3.3 mm | 0.130 in
Nominal Dimensions Head Diameter
9.5 mm | 0.374 in
Nominal Dimensions Head Thickness
1.20 mm | 0.047 in
Nominal Dimensions Mandrel Diameter
1.81 mm | 0.71 in
Nominal Dimensions Maximum Grip Range
12.5 mm | 0.492 in
Nominal Dimensions Minimum Grip Range
10.5 mm | 0.413 in
Nominal Forces Nominal Shear Force
75 kgf | 165 lbf
Nominal Forces Nominal Tensile Force
100 kgf | 220 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (2.5 mg) to AA 5052
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
5000
Technical Specs Head Style
Large
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel SAE 1006-1022
