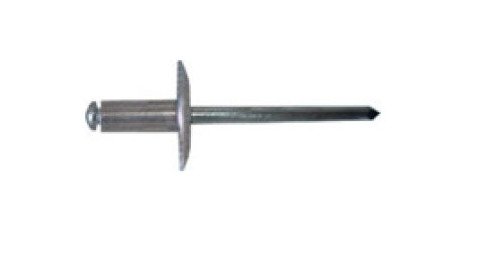

Ornit 3.2mm Large Open End Blind Rivet
Ornit 3.2mm Large Open End Blind Rivet
SKU:OPE-a6a52a
Premium Ornit 3.2mm Large Blind Rivet for secure and lasting connections. Meets Federal standards.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Ornit 3.2mm Large Open End Blind Rivet
$39.99
Quantity: 1
Claim Your Seller Account
Ornit 3.2mm Large Open End Blind Rivet
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ornit 3.2mm Large Open End Blind Rivet is a premium fastening solution crafted from high-quality Aluminum Alloy for enhanced durability and corrosion resistance. With a head style designed for maximum grip range of 4.5mm and nominal shear force of 75kgf, this rivet ensures secure and lasting connections. Ideal for a wide range of applications, this blind rivet meets stringent Federal/DoD procurement standards and FAR compliance factors.
Product Specifications
Nominal Dimensions Body Length
8.0 mm | 0.315 in
Nominal Dimensions Diameter
3.2 mm
Nominal Dimensions Drillhole Size
3.3 mm | 0.130 in
Nominal Dimensions Head Diameter
9.5 mm | 0.374 in
Nominal Dimensions Head Thickness
1.20 mm | 0.047 in
Nominal Dimensions Mandrel Diameter
1.81 mm | 0.71 in
Nominal Dimensions Maximum Grip Range
4.5 mm | 0.177 in
Nominal Dimensions Minimum Grip Range
2.5 mm | 0.098 in
Nominal Forces Nominal Shear Force
75 kgf | 165 lbf
Nominal Forces Nominal Tensile Force
100 kgf | 220 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (2.5 mg) to AA 5052
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
8000
Technical Specs Head Style
Large
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel SAE 1006-1022
