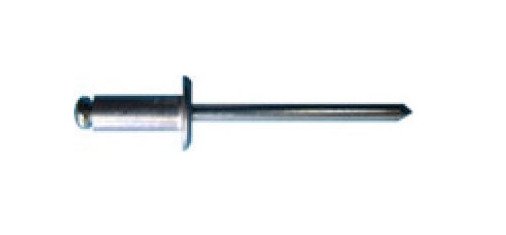

Ornit 3.2mm Open End Dome Blind Rivet
Ornit 3.2mm Open End Dome Blind Rivet
SKU:OPE-cc6f81
Secure and durable Ornit 3.2mm Dome Blind Rivet for industrial applications. High strength with precise dimensions.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Ornit 3.2mm Open End Dome Blind Rivet
$29.99
Quantity: 1
Claim Your Seller Account
Ornit 3.2mm Open End Dome Blind Rivet
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ornit 3.2mm Open End Dome Blind Rivet is a high-quality fastening solution designed for various industrial applications. Made from Aluminum Alloy (AA 5052) and Low Carbon Steel SAE 1006-1022, this rivet offers excellent strength and durability. With a body length of 18.0mm and a maximum grip range of 14.5mm, it provides secure and reliable connections. Meeting nominal shear force of 75 kgf and nominal tensile force of 100 kgf, this rivet ensures robust performance under pressure. Ideal for construction, automotive, and aerospace industries.
Product Specifications
Nominal Dimensions Body Length
18.0 mm | 0.709 in
Nominal Dimensions Diameter
3.2 mm
Nominal Dimensions Drillhole Size
3.3 mm | 0.130 in
Nominal Dimensions Head Diameter
6.3 mm | 0.248 in
Nominal Dimensions Head Thickness
0.90 mm | 0.035 in
Nominal Dimensions Mandrel Diameter
1.81 mm | 0.071 in
Nominal Dimensions Maximum Grip Range
14.5 mm | 0.571 in
Nominal Dimensions Minimum Grip Range
12.5 mm | 0.492 in
Nominal Forces Nominal Shear Force
75 kgf | 165 lbf
Nominal Forces Nominal Tensile Force
100 kgf | 220 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (2.5 mg) to AA 5052
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
6000
Technical Specs Head Style
Dome
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel SAE 1006-1022
