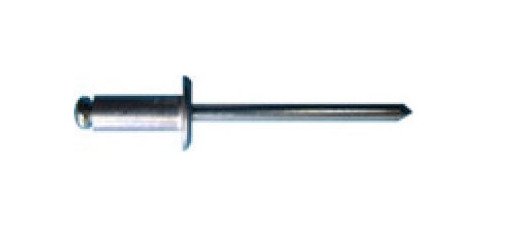

Ornit 3.2mm x 10.0mm Dome Blind Rivet
Ornit 3.2mm x 10.0mm Dome Blind Rivet
SKU:OPE-a84a1d
High-quality Ornit 3.2mm x 10.0mm Dome Blind Rivet for secure and durable fastening.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Ornit 3.2mm x 10.0mm Dome Blind Rivet
$89.99
Quantity: 1
Claim Your Seller Account
Ornit 3.2mm x 10.0mm Dome Blind Rivet
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ornit 3.2mm x 10.0mm Dome Blind Rivet is a premium fastening solution designed for durability and precision. Constructed with high-grade Aluminum Alloy to AA 5052 for strength and a Zinc Plated Chromium (Cr) VI Free mandrel, this rivet ensures reliable performance. With a nominal shear force of 75 kgf and a nominal tensile force of 100 kgf, it meets the highest industry standards. Whether for consumer or institutional use, this rivet guarantees secure and long-lasting fastening.
Product Specifications
Nominal Dimensions Body Length
10.0 mm | 0.394 in
Nominal Dimensions Diameter
3.2 mm
Nominal Dimensions Drillhole Size
3.3 mm | 0.130 in
Nominal Dimensions Head Diameter
6.3 mm | 0.248 in
Nominal Dimensions Head Thickness
0.90 mm | 0.035 in
Nominal Dimensions Mandrel Diameter
1.81 mm | 0.071 in
Nominal Dimensions Maximum Grip Range
6.5 mm | 0.256 in
Nominal Dimensions Minimum Grip Range
4.5 mm | 0.177 in
Nominal Forces Nominal Shear Force
75 kgf | 165 lbf
Nominal Forces Nominal Tensile Force
100 kgf | 220 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (2.5 mg) to AA 5052
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
10000
Technical Specs Head Style
Dome
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel SAE 1006-1022
