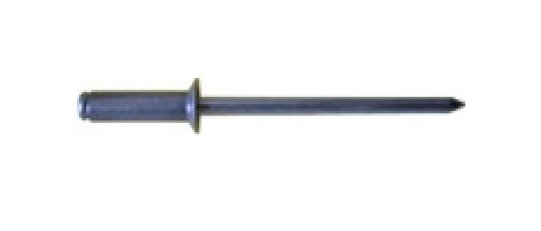

Ornit 3.2mm x 10.0mm Open End Countersunk Blind Rivet
Ornit 3.2mm x 10.0mm Open End Countersunk Blind Rivet
SKU:OPE-c76807
High-strength Ornit blind rivet, 3.2mm x 10.0mm, aluminum alloy body, zinc-plated chromium VI-free mandrel. Exceptional shear and tensile forces.
Regular price
$65.99
Regular price
Sale price
$65.99
Unit price
per
Initiate Order
Ornit 3.2mm x 10.0mm Open End Countersunk Blind Rivet
$65.99
Quantity: 1
Claim Your Seller Account
Ornit 3.2mm x 10.0mm Open End Countersunk Blind Rivet
$65.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ornit 3.2mm x 10.0mm Open End Countersunk Blind Rivet offers superior fastening capabilities for a wide range of applications. Constructed from high-quality aluminum alloy to AA 5052 standards, with a zinc-plated chromium VI-free mandrel, this rivet guarantees exceptional strength and corrosion resistance. Engineered for precision, it boasts a nominal shear force of 75 kgf and a nominal tensile force of 100 kgf, ensuring reliable and durable connections. Ideal for both consumer and institutional use, this rivet delivers unmatched performance and adherence to strict industry standards.
Product Specifications
Nominal Dimensions Body Length
10.0 mm | 0.394 in
Nominal Dimensions Diameter
3.2 mm
Nominal Dimensions Drillhole Size
3.3 mm | 0.130 in
Nominal Dimensions Head Diameter
5.7 mm | 0.224 in
Nominal Dimensions Head Thickness
0.90 mm | 0.035 in
Nominal Dimensions Mandrel Diameter
1.81 mm | 0.071 in
Nominal Dimensions Maximum Grip Range
6.5 mm | 0.256 in
Nominal Dimensions Minimum Grip Range
4.5 mm | 0.177 in
Nominal Forces Nominal Shear Force
75 kgf | 165 lbf
Nominal Forces Nominal Tensile Force
100 kgf | 220 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (2.5 mg) to AA 5052
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
10000
Technical Specs Head Style
Countersunk
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel SAE 1006-1022
