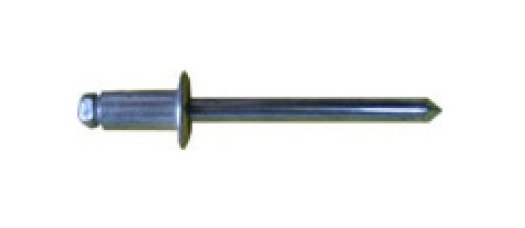

Ornit 3.2mm x 14.0mm Steel Dome Blind Rivet
Ornit 3.2mm x 14.0mm Steel Dome Blind Rivet
SKU:OPE-bf4b62
Premium Ornit 3.2mm x 14.0mm Dome Blind Rivet for secure fastening. Durable, reliable, and compliant with industry standards.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Ornit 3.2mm x 14.0mm Steel Dome Blind Rivet
$59.99
Quantity: 1
Claim Your Seller Account
Ornit 3.2mm x 14.0mm Steel Dome Blind Rivet
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ornit 3.2mm Diameter and 14.0mm Body Length Steel Dome Blind Rivet is a high-quality fastening solution suitable for various applications. Crafted from low carbon steel SAE 1006 for durability, it features a natural finish and zinc-plated chromium (Cr) VI free mandrel. With a shear force of 130 kgf and tensile force of 175 kgf, this rivet ensures secure and reliable connections. Meeting stringent industry standards, this rivet is ideal for both consumer and institutional procurement needs.
Product Specifications
Nominal Dimensions Body Length
14.0 mm | 0.551 in
Nominal Dimensions Diameter
3.2 mm
Nominal Dimensions Drillhole Size
3.3 mm | 0.130 in
Nominal Dimensions Head Diameter
6.3 mm | 0.248 in
Nominal Dimensions Head Thickness
0.90 mm | 0.035 in
Nominal Dimensions Mandrel Diameter
2.01 mm | 0.079 in
Nominal Dimensions Maximum Grip Range
10.5 mm | 0.413 in
Nominal Dimensions Minimum Grip Range
8.5 mm | 0.335 in
Nominal Forces Nominal Shear Force
130 kgf | 286 lbf
Nominal Forces Nominal Tensile Force
175 kgf | 385 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Low Carbon Steel, SAE 1006 or Equivalent
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
8000
Technical Specs Head Style
Steel Dome
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel SAE 1006-1022
