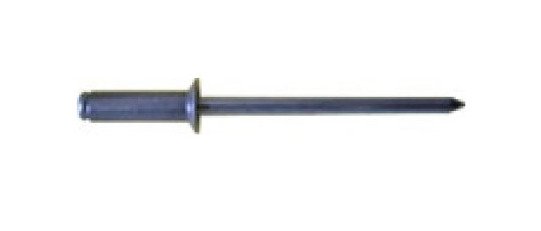

Ornit 3.2mm x 8.0mm Open End Countersunk Blind Rivet
Ornit 3.2mm x 8.0mm Open End Countersunk Blind Rivet
SKU:OPE-9b2cff
Ornit 3.2mm x 8.0mm Blind Rivet - Aluminum Alloy, Zinc-Plated Mandrel, High Shear and Tensile Forces, Countersunk Head. Ideal for Construction & Aerospace.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Ornit 3.2mm x 8.0mm Open End Countersunk Blind Rivet
$69.99
Quantity: 1
Claim Your Seller Account
Ornit 3.2mm x 8.0mm Open End Countersunk Blind Rivet
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

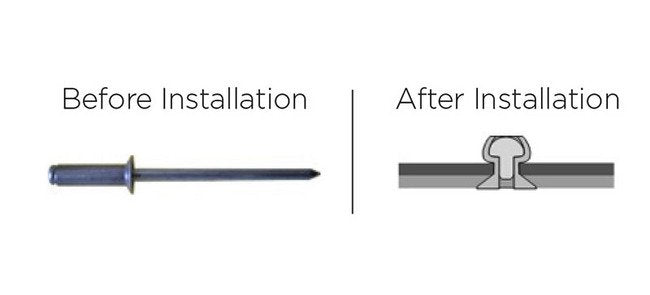

Upgrade your fastening solutions with the Ornit 3.2mm Diameter and 8.0mm Body Length Open End Countersunk Blind Rivet. Crafted from Aluminum Alloy (2.5 mg) to AA 5052 with a zinc-plated chromium (Cr) VI-free mandrel, this rivet ensures durability and corrosion resistance. With a nominal shear force of 75 kgf and nominal tensile force of 100 kgf, it guarantees secure fastening in various applications. The low carbon steel SAE 1006-1022 mandrel adds strength, while the countersunk head style provides a flush finish. Compliant with industry standards, this rivet is ideal for construction, aerospace, and automotive sectors.
Product Specifications
Nominal Dimensions Body Length
8.0 mm | 0.315 in
Nominal Dimensions Diameter
3.2 mm
Nominal Dimensions Drillhole Size
3.3 mm | 0.130 in
Nominal Dimensions Head Diameter
5.7 mm | 0.224 in
Nominal Dimensions Head Thickness
0.90 mm | 0.035 in
Nominal Dimensions Mandrel Diameter
1.81 mm | 0.071 in
Nominal Dimensions Maximum Grip Range
4.5 mm | 0.177 in
Nominal Dimensions Minimum Grip Range
2.5 mm | 0.098 in
Nominal Forces Nominal Shear Force
75 kgf | 165 lbf
Nominal Forces Nominal Tensile Force
100 kgf | 220 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (2.5 mg) to AA 5052
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
10000
Technical Specs Head Style
Countersunk
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel SAE 1006-1022
