Ornit 3.2mm x 9.0mm All Steel Dome Head Rivet
Ornit 3.2mm x 9.0mm All Steel Dome Head Rivet
SKU:STE-ca1d13
Secure and durable All Steel Dome Head Rivet, ideal for industrial applications. Compliant with government procurement standards.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Ornit 3.2mm x 9.0mm All Steel Dome Head Rivet
$59.99
Quantity: 1
Claim Your Seller Account
Ornit 3.2mm x 9.0mm All Steel Dome Head Rivet
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

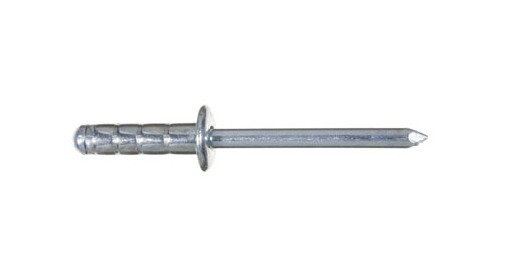

The Ornit 3.2mm x 9.0mm All Steel Dome Head Rivet is a reliable and durable fastening solution crafted from low carbon steel with a zinc-plated chromium finish. With a head diameter of 7.2mm and a maximum grip range of 4.0mm, this rivet offers a secure and lasting connection. Designed to withstand 175kgf of nominal tensile force and compliant with government procurement standards, this rivet is ideal for industrial applications requiring precision and strength.
Product Specifications
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Body Length
9.0 mm | 0.354 in
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
10000
Technical Specs Diameter
3.2 mm | 1/8 in
Technical Specs Drillhole Size
3.3 mm | 0.130 in
Technical Specs Head Diameter
7.2 mm | 0.283 in
Technical Specs Head Style
Dome
Technical Specs Head Thickness
0.85 mm | 0.033 in
Technical Specs Mandrel Diameter
2.1 mm | 0.083 in
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Carbon Steel
Technical Specs Maximum Grip Range
4.0 mm | 0.157 in
Technical Specs Minimum Grip Range
1.0 mm | 0.039 in
Technical Specs Nominal Shear Force
154 kgf | 340 lbf
Technical Specs Nominal Tensile Force
175 kgf | 385 lbf
