Ornit 3/8 Inch Flanged Aluminum Collar
Ornit 3/8 Inch Flanged Aluminum Collar
SKU:FLA-8d5bc2
High-quality 3/8" Flanged Aluminum Collar for secure and stable fastening in industrial applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Ornit 3/8 Inch Flanged Aluminum Collar
$29.99
Quantity: 1
Claim Your Seller Account
Ornit 3/8 Inch Flanged Aluminum Collar
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

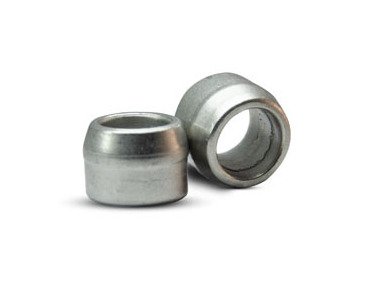

The Ornit 3/8 Inch Flanged Aluminum Collar is a high-quality fastening solution designed for precise industrial applications. Constructed from AL-6061 Aluminum with a natural finish and zinc coating, this collar ensures durability and corrosion resistance. With a diameter range of 0.378 to 0.390 inches and a length of 0.502 to 0.532 inches, it provides a secure grip for materials. The flanged head shape enhances stability, making it ideal for structural assembly. Compliant with Federal procurement standards, this collar offers reliability and precision in every installation.
Product Specifications
Note Note

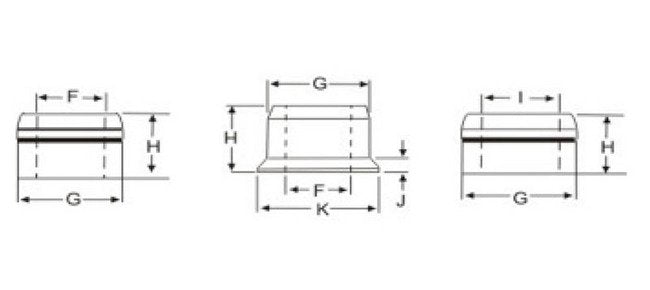

When using Flange collars, and "J" dimension to thickness of material being fastened to determine grip number.
Technical Specs Brands
Ornit
Technical Specs Coating
Zinc
Technical Specs Diameter
3/8 in
Technical Specs Diameter F
0.378 to 0.390 in
Technical Specs Finish
Natural
Technical Specs Head Shape
Flanged
Technical Specs Length H
0.532 - 0.502 in
Technical Specs Material
AL-6061 Aluminum (Annealing)
Technical Specs Maximum Dimension J
0.125 - 0.062 in
Technical Specs Maximum Dimension K
0.781 - 0.719 in
Technical Specs Maximum Hole Diameter
0.600 in
Technical Specs Minimum Hole Diameter
0.590 in
Technical Specs Weight Per 1000 Pieces
4.75 kg
