Ornit 4.0mm Dome Blind Rivet Pack of 5000
Ornit 4.0mm Dome Blind Rivet Pack of 5000
SKU:OPE-822023
Ornit 4.0mm Dome Blind Rivet Pack - Superior strength & precise grip range. Meets Federal/DoD standards.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Ornit 4.0mm Dome Blind Rivet Pack of 5000
$99.99
Quantity: 1
Claim Your Seller Account
Ornit 4.0mm Dome Blind Rivet Pack of 5000
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

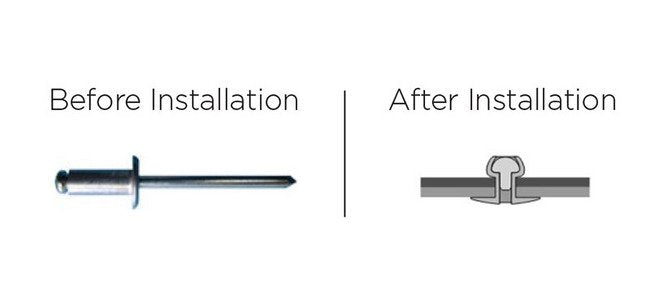

Experience unmatched reliability with the Ornit 4.0mm Dome Blind Rivet. Constructed from Aluminum Alloy AA 5052 with a Zinc Plated Chromium VI-Free Low Carbon Steel Mandrel, this rivet ensures superior strength. With a 16.0mm body length and precise dimensions, it offers a secure grip range of 9.5mm to 11.5mm. Meeting stringent Federal/DoD procurement standards, this rivet guarantees a nominal shear force of 100 kgf and a tensile force of 160 kgf.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Nominal Dimensions Body Length
16.0 mm | 0.630 in
Nominal Dimensions Diameter
4.0 mm
Nominal Dimensions Drillhole Size
4.1 mm | 0.161 in
Nominal Dimensions Head Diameter
7.8 mm | 0.307 in
Nominal Dimensions Head Thickness
1.15 mm | 0.045 in
Nominal Dimensions Mandrel Diameter
2.31 mm | 0.091 in
Nominal Dimensions Maximum Grip Range
11.5 mm | 0.453 in
Nominal Dimensions Minimum Grip Range
9.5 mm | 0.374 in
Nominal Forces Nominal Shear Force
100 kgf | 220 lbf
Nominal Forces Nominal Tensile Force
160 kgf | 352 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (2.5 mg) to AA 5052
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
5000
Technical Specs Head Style
Dome
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel SAE 1006-1022
