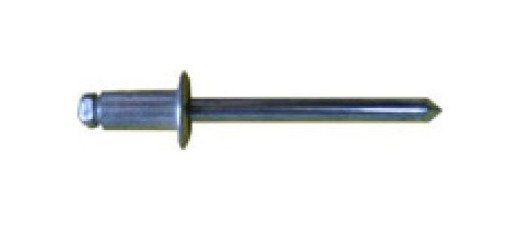

Ornit 4.0mm Open End Steel Dome Blind Rivet
Ornit 4.0mm Open End Steel Dome Blind Rivet
SKU:OPE-dbe487
Secure and durable Ornit 4.0mm Steel Blind Rivet for industrial applications. Zinc-plated mandrel, meets procurement standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Ornit 4.0mm Open End Steel Dome Blind Rivet
$29.99
Quantity: 1
Claim Your Seller Account
Ornit 4.0mm Open End Steel Dome Blind Rivet
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ornit 4.0mm Open End Steel Dome Blind Rivet is a reliable fastening solution made of low carbon steel, SAE 1006 or equivalent. With a body length of 16.0mm and impressive shear force of 190 kgf, it ensures sturdy connections. The zinc-plated chromium mandrel enhances durability, meeting stringent procurement standards. Ideal for industrial applications requiring precision and strength.
Product Specifications
Nominal Dimensions Body Length
16.0 mm | 0.630 in
Nominal Dimensions Diameter
4.0 mm
Nominal Dimensions Drillhole Size
4.1 mm | 0.161 in
Nominal Dimensions Head Diameter
7.8 mm | 0.307 in
Nominal Dimensions Head Thickness
1.15 mm | 0.045 in
Nominal Dimensions Mandrel Diameter
2.31 mm | 0.091 in
Nominal Dimensions Maximum Grip Range
11.5 mm | 0.453 in
Nominal Dimensions Minimum Grip Range
9.5 mm | 0.374 in
Nominal Forces Nominal Shear Force
190 kgf | 418 lbf
Nominal Forces Nominal Tensile Force
280 kgf | 616 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Low Carbon Steel, SAE 1006 or Equivalent
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
5000
Technical Specs Head Style
Steel Dome
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel SAE 1006-1022
