Ornit 4.0mm Steel Dome Head Rivet
Ornit 4.0mm Steel Dome Head Rivet
SKU:STE-25e442
Versatile Ornit 4.0mm Steel Dome Rivet for secure fastening in diverse applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Ornit 4.0mm Steel Dome Head Rivet
$89.99
Quantity: 1
Claim Your Seller Account
Ornit 4.0mm Steel Dome Head Rivet
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

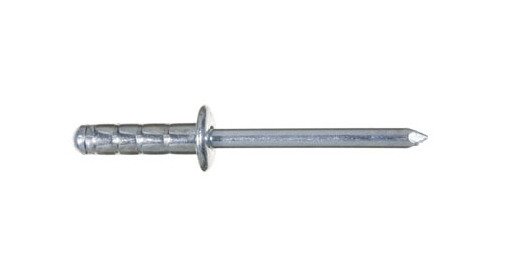

The Ornit 4.0mm Steel Dome Head Rivet is a versatile and reliable fastener with a diameter of 4.0mm and a body length of 11.0mm. Manufactured with low carbon steel and zinc-plated chromium (Cr) VI free finish, this rivet ensures durability and corrosion resistance. With a multi-grip function, it offers a minimum grip range of 1.4mm and a maximum grip range of 5.0mm, capable of withstanding nominal shear force of 200 kgf and nominal tensile force of 240 kgf. Ideal for various applications, this rivet comes in a carton quantity of 4000, meeting stringent industry standards.
Product Specifications
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Body Length
11.0 mm | 0.433 in
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
4000
Technical Specs Diameter
4.0 mm | 5/12 in
Technical Specs Drillhole Size
4.1 mm | 0.161 in
Technical Specs Head Diameter
8.1 mm | 0.319 in
Technical Specs Head Style
Dome
Technical Specs Head Thickness
1.20 mm | 0.047 in
Technical Specs Mandrel Diameter
2.73 mm | 0.107 in
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Carbon Steel
Technical Specs Maximum Grip Range
5.0 mm | 0.197 in
Technical Specs Minimum Grip Range
1.4 mm | 0.055 in
Technical Specs Nominal Shear Force
200 kgf | 440 lbf
Technical Specs Nominal Tensile Force
240 kgf | 528 lbf
