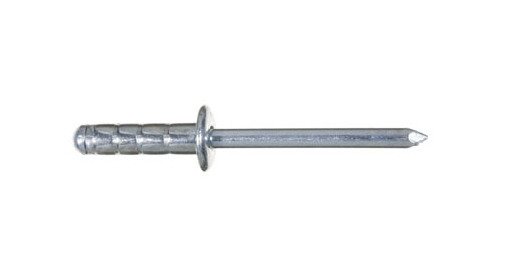

Ornit 4.0mm Steel Dome Head Rivet
Ornit 4.0mm Steel Dome Head Rivet
SKU:STE-20f811
Versatile Ornit 4.0mm Steel Dome Head Rivet for main cabin interiors. Strong grip range, low carbon steel construction with corrosion-resistant finish.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Ornit 4.0mm Steel Dome Head Rivet
$39.99
Quantity: 1
Claim Your Seller Account
Ornit 4.0mm Steel Dome Head Rivet
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ornit Steel Dome Head Rivet is a high-quality fastener designed for a range of applications in main cabin interiors. With a 4.0mm diameter, 14.0mm body length, and impressive grip range of 1.5mm to 8.0mm, this rivet offers exceptional tensile and shear force capabilities. Crafted from low carbon steel with a zinc-plated chromium VI free finish, it ensures durability and corrosion resistance. Compliant with federal procurement standards, GSA requirements, and FAR regulations, this rivet meets the stringent quality demands of institutional buyers.
Product Specifications
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Body Length
14.0 mm | 0.551 in
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
4000
Technical Specs Diameter
4.0 mm | 5/12 in
Technical Specs Drillhole Size
4.1 mm | 0.161 in
Technical Specs Head Diameter
8.1 mm | 0.319 in
Technical Specs Head Style
Dome
Technical Specs Head Thickness
1.20 mm | 0.047 in
Technical Specs Mandrel Diameter
2.73 mm | 0.107 in
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Carbon Steel
Technical Specs Maximum Grip Range
8.0 mm | 0.315 in
Technical Specs Minimum Grip Range
1.5 mm | 0.059 in
Technical Specs Nominal Shear Force
200 kgf | 440 lbf
Technical Specs Nominal Tensile Force
240 kgf | 528 lbf
