Ornit 4.0mm x 11.0mm Closed End Blind Rivet
Ornit 4.0mm x 11.0mm Closed End Blind Rivet
SKU:CLO-eb7ed3
Secure joints with precision using the Ornit Closed End Blind Rivet - 4.0mm x 11.0mm. Reliable aluminum alloy construction with high shear and tensile forces.
Regular price
$169.99
Regular price
Sale price
$169.99
Unit price
per
Initiate Order
Ornit 4.0mm x 11.0mm Closed End Blind Rivet
$169.99
Quantity: 1
Claim Your Seller Account
Ornit 4.0mm x 11.0mm Closed End Blind Rivet
$169.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

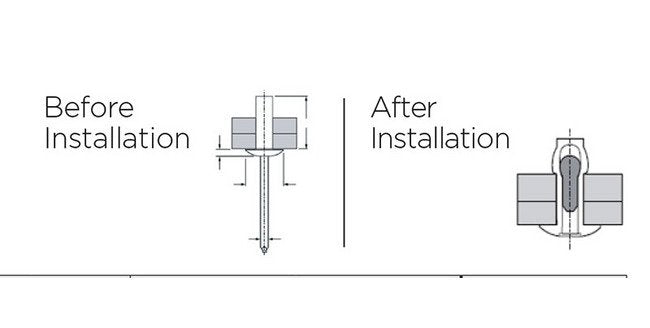

The Ornit 4.0mm diameter and 11.0mm body length closed end blind rivet is a reliable fastening solution made from quality aluminum alloy (AA 5052) with a low carbon steel mandrel for strength. With a natural finish, this rivet offers excellent shear force of 153 kgf and tensile force of 214 kgf, ensuring secure joints in various applications. Its precise dimensions, including a 4.1mm drill/hole size and maximum grip range of 6.5mm, make it ideal for industrial uses. Compliant with federal procurement standards, this rivet is a dependable choice for both consumer and institutional buyers.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Nominal Dimensions Body Length
11.0 mm | 0.433 in
Nominal Dimensions Diameter
4.0 mm
Nominal Dimensions Drillhole Size
4.1 mm | 0.161 in
Nominal Dimensions Head Diameter
8 mm | 0.315 in
Nominal Dimensions Head Thickness
1.70 mm | 0.067 in
Nominal Dimensions Mandrel Diameter
2.2 mm | 0.087 in
Nominal Dimensions Maximum Grip Range
6.5 mm | 0.256 in
Nominal Dimensions Minimum Grip Range
5.0 mm | 0.197 in
Nominal Forces Nominal Shear Force
153 kgf | 336.6 lbf
Nominal Forces Nominal Tensile Force
214 kgf | 470.8 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (5.0 mg) to AA 5052
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
4000
Technical Specs Mandrel Finish
Black Phosphate
Technical Specs Mandrel Material
Low Carbon Steel SAE 1006-1022
