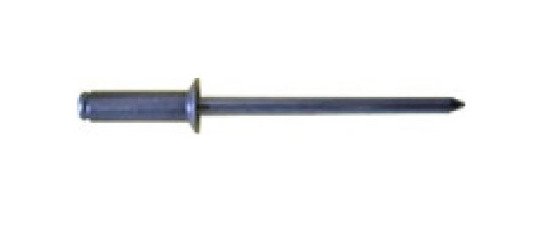

Ornit 4.0mm x 14.0mm Open End Countersunk Blind Rivet

Name: Ornit 4.0mm x 14.0mm Open End Countersunk Blind Rivet
Brand: Ornit USA
SKU: OPE-5b22bf
Price: 55.99 USD
Availability: OutOfStock

SKU:OPE-5b22bf

Ornit 4.0mm x 14.0mm Blind Rivet - Durable aluminum alloy construction, corrosion-resistant zinc-plated chromium VI-free mandrel, precise and secure fastening.

$55.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Experience superior fastening with the Ornit 4.0mm Diameter and 14.0mm Body Length Open End Countersunk Blind Rivet. Crafted from high-quality Aluminum Alloy AA 5052, this rivet ensures durability and reliability. The zinc-plated chromium VI-free mandrel offers corrosion resistance. With a nominal shear force of 100 kgf and nominal tensile force of 160 kgf, this rivet meets stringent industrial standards for secure fastening. Ideal for a range of applications requiring precision and strength.

Product Specifications

Nominal Dimensions Body Length

14.0 mm | 0.551 in

Nominal Dimensions Diameter

4.0 mm

Nominal Dimensions Drillhole Size

4.1 mm | 0.161 in

Nominal Dimensions Head Diameter

7.2 mm | 0.283 in

Nominal Dimensions Head Thickness

1.10 mm | 0.043 in

Nominal Dimensions Mandrel Diameter

2.31 mm | 0.091 in

Nominal Dimensions Maximum Grip Range

9.5 mm | 0.374 in

Nominal Dimensions Minimum Grip Range

7.5 mm | 0.295 in

Nominal Forces Nominal Shear Force

100 kgf | 220 lbf

Nominal Forces Nominal Tensile Force

160 kgf | 352 lbf

Technical Specs Body Finish

Natural

Technical Specs Body Material

Aluminum Alloy (2.5 mg) to AA 5052

Technical Specs Brands

Ornit

Technical Specs Carton Quantity

6000

Technical Specs Head Style

Countersunk

Technical Specs Mandrel Finish

Zinc Plated Chromium (Cr) VI Free

Technical Specs Mandrel Material

Low Carbon Steel SAE 1006-1022

Ornit 4.0mm x 14.0mm Open End Countersunk Blind Rivet
