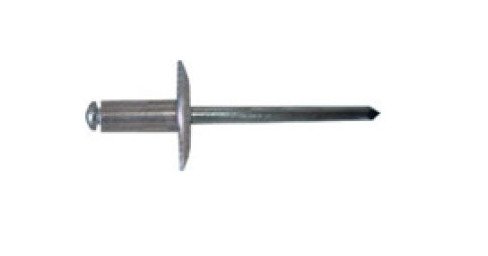

Ornit 4.0mm x 16.0mm Open End Large Blind Rivet

Name: Ornit 4.0mm x 16.0mm Open End Large Blind Rivet
Brand: Ornit USA
SKU: OPE-a19c3c
Price: 49.99 USD
Availability: OutOfStock

SKU:OPE-a19c3c

Secure and durable Ornit blind rivet for industrial applications. Compliant with Federal/DoD standards.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Ornit 4.0mm x 16.0mm Open End Large Blind Rivet is a high-quality fastening solution crafted from Aluminum Alloy AA 5052 with a Zinc Plated Chromium VI Free low carbon steel mandrel. Featuring a large head diameter of 12.0mm and a strong tensile force of 160kgf, this rivet ensures secure and durable connections. Ideal for applications requiring a minimum grip range of 9.5mm and a maximum grip range of 11.5mm, this rivet offers reliable performance in various industrial settings. Compliant with Federal/DoD standards and FAR regulations, it meets stringent procurement requirements.

Product Specifications

Nominal Dimensions Body Length

16.0 mm | 0.630 in

Nominal Dimensions Diameter

4.0 mm

Nominal Dimensions Drillhole Size

4.1 mm | 0.161 in

Nominal Dimensions Head Diameter

12.0 mm | 0.472 in

Nominal Dimensions Head Thickness

1.5 mm | 0.059 in

Nominal Dimensions Mandrel Diameter

2.31 mm | 0.091 in

Nominal Dimensions Maximum Grip Range

11.5 mm | 0.453 in

Nominal Dimensions Minimum Grip Range

9.5 mm | 0.374 in

Nominal Forces Nominal Shear Force

100 kgf | 220 lbf

Nominal Forces Nominal Tensile Force

160 kgf | 352 lbf

Technical Specs Body Finish

Natural

Technical Specs Body Material

Aluminum Alloy (2.5 mg) to AA 5052

Technical Specs Brands

Ornit

Technical Specs Carton Quantity

4000

Technical Specs Head Style

Large

Technical Specs Mandrel Finish

Zinc Plated Chromium (Cr) VI Free

Technical Specs Mandrel Material

Low Carbon Steel SAE 1006-1022

Ornit 4.0mm x 16.0mm Open End Large Blind Rivet
