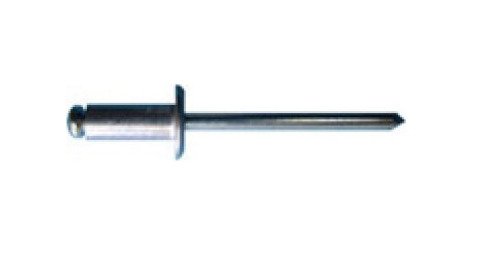

Ornit 4.0mm x 8.0mm Dome Blind Rivet
Ornit 4.0mm x 8.0mm Dome Blind Rivet
SKU:OPE-2a0113
High-quality Ornit Dome Blind Rivet for secure and durable fastening. Aluminum Alloy, Zinc-plated Chromium VI-Free Steel. Precision dimensions for reliable grip. Meets industry standards.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Ornit 4.0mm x 8.0mm Dome Blind Rivet
$49.99
Quantity: 1
Claim Your Seller Account
Ornit 4.0mm x 8.0mm Dome Blind Rivet
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ornit 4.0mm x 8.0mm Dome Blind Rivet is a high-quality fastening solution designed for durability and reliability. With a body constructed from Aluminum Alloy AA 5052 and a Zinc-plated Chromium VI-Free Low Carbon Steel mandrel, this rivet offers exceptional strength and corrosion resistance. It features precise dimensions, including a 4.0mm diameter and 8.0mm body length, capable of accommodating grip ranges from 1.5mm to 3.5mm. Meeting stringent industry standards, this rivet ensures a secure and long-lasting assembly, ideal for various applications requiring robust fastening.
Product Specifications
Nominal Dimensions Body Length
8.0 mm | 0.315 in
Nominal Dimensions Diameter
4.0 mm
Nominal Dimensions Drillhole Size
4.1 mm | 0.161 in
Nominal Dimensions Head Diameter
7.8 mm | 0.307 in
Nominal Dimensions Head Thickness
1.15 mm | 0.045 in
Nominal Dimensions Mandrel Diameter
2.31 mm | 0.091 in
Nominal Dimensions Maximum Grip Range
3.5 mm | 0.138 in
Nominal Dimensions Minimum Grip Range
1.5 mm | 0.059 in
Nominal Forces Nominal Shear Force
100 kgf | 220 lbf
Nominal Forces Nominal Tensile Force
160 kgf | 352 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (2.5 mg) to AA 5052
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
7000
Technical Specs Head Style
Dome
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel SAE 1006-1022
