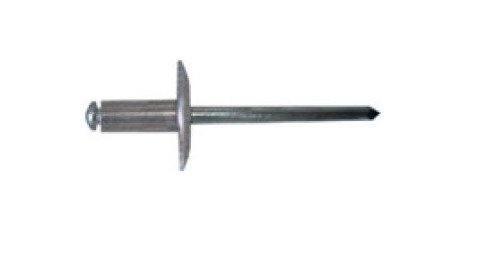

Ornit 4.8mm Open End Large Blind Rivet
Ornit 4.8mm Open End Large Blind Rivet
SKU:OPE-c2324d
High-strength Ornit 4.8mm Open End Large Blind Rivet for heavy-duty applications. Aluminum alloy body, zinc-plated chromium mandrel for durability.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Ornit 4.8mm Open End Large Blind Rivet
$39.99
Quantity: 1
Claim Your Seller Account
Ornit 4.8mm Open End Large Blind Rivet
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ornit 4.8mm Open End Large Blind Rivet is a high-quality fastening solution designed for heavy-duty applications. With a body length of 25.0mm and a diameter of 4.8mm, this rivet offers exceptional tensile and shear strength, capable of handling loads up to 220 kgf. The aluminum alloy body and zinc-plated chromium mandrel ensure durability and corrosion resistance. Perfect for industrial and construction projects, this rivet provides a secure and reliable fastening solution.
Product Specifications
Nominal Dimensions Body Length
25.0 mm | 0.984 in
Nominal Dimensions Diameter
4.8 mm
Nominal Dimensions Drillhole Size
4.9 mm | 0.193 in
Nominal Dimensions Head Diameter
14 mm | 0.551 in
Nominal Dimensions Head Thickness
1.70 mm | 0.067 in
Nominal Dimensions Mandrel Diameter
2.61 mm | 0.103 in
Nominal Dimensions Maximum Grip Range
20.0 mm | 0.787 in
Nominal Dimensions Minimum Grip Range
17.0 mm | 0.669 in
Nominal Forces Nominal Shear Force
150 kgf | 330 lbf
Nominal Forces Nominal Tensile Force
220 kgf | 484 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (2.5 mg) to AA 5052
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
2000
Technical Specs Head Style
Large
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel SAE 1006-1022
