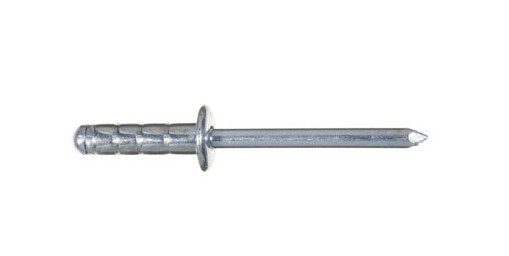

Ornit 4.8mm Steel Dome Head Rivet
Ornit 4.8mm Steel Dome Head Rivet
SKU:STE-1f31f8
High-quality Ornit 4.8mm Dome Head Rivet for secure fastening in automotive applications. Low carbon steel construction with zinc-plated chromium finish.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Ornit 4.8mm Steel Dome Head Rivet
$59.99
Quantity: 1
Claim Your Seller Account
Ornit 4.8mm Steel Dome Head Rivet
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ornit 4.8mm Steel Dome Head Rivet is a premium quality fastener crafted from low carbon steel with a zinc-plated chromium finish. With a 11.0mm body length and multi-grip function, this rivet ensures secure attachment in various applications. Meeting stringent Federal/DoD procurement standards, this rivet is ideal for automotive interior applications with high shear and tensile forces. Trusted by industry professionals for its durability and reliability.
Product Specifications
Applications Automotive Application
InteriorThe U-Fix is a highly versatile purpose-built fastener, featuring an excellent multi-grip function ideal for a variety of purposes. Commonly used to secure components within the vehicle.
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Body Length
11.0 mm | 0.433 in
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
5000
Technical Specs Diameter
4.8 mm | 3/16 in
Technical Specs Drillhole Size
4.9 mm | 0.193 in
Technical Specs Head Diameter
9.8 mm | 0.386 in
Technical Specs Head Style
Dome
Technical Specs Head Thickness
1.45 mm | 0.057 in
Technical Specs Mandrel Diameter
2.9 mm | 0.114 in
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Carbon Steel
Technical Specs Maximum Grip Range
6.0 mm | 0.236 in
Technical Specs Minimum Grip Range
1.5 mm | 0.059 in
Technical Specs Nominal Shear Force
450 kgf | 990 lbf
Technical Specs Nominal Tensile Force
390 kgf | 858 lbf
