Ornit 4.8mm x 16.0mm Open End Peel Blind Rivet
Ornit 4.8mm x 16.0mm Open End Peel Blind Rivet
SKU:OPE-b0788a
Ornit 4.8mm x 16.0mm Peel Blind Rivet - Premium quality aluminum rivet with superior strength and corrosion resistance for industrial use.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Ornit 4.8mm x 16.0mm Open End Peel Blind Rivet
$59.99
Quantity: 1
Claim Your Seller Account
Ornit 4.8mm x 16.0mm Open End Peel Blind Rivet
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

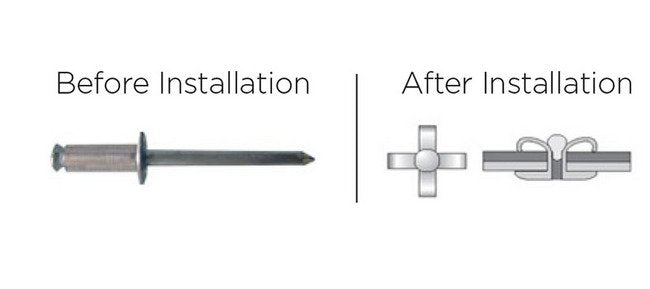

The Ornit 4.8mm x 16.0mm Open End Peel Blind Rivet is a premium fastening solution designed for industrial applications. Crafted from Aluminum Alloy conforming to AA 5056/5154 standards, with a Zinc Plated Chromium (Cr) VI Free Mandrel, this rivet ensures superior strength and corrosion resistance. With a nominal shear force and tensile force of 200kgf, it guarantees secure and long-lasting fastening in diverse environments. Perfect for structural assemblies, automotive, and aerospace industries.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Nominal Dimensions Body Length
16.0 mm | 0.630 in
Nominal Dimensions Diameter
4.8 mm
Nominal Dimensions Drillhole Size
5.2 mm | 0.205 in
Nominal Dimensions Head Diameter
9.3 mm | 0.366 in
Nominal Dimensions Head Thickness
1.30 mm | 0.051 in
Nominal Dimensions Mandrel Diameter
2.61 mm | 0.103 in
Nominal Dimensions Maximum Grip Range
9.0 mm | 0.354 in
Nominal Dimensions Minimum Grip Range
5.0 mm | 0.197 in
Nominal Forces Nominal Shear Force
200 kgf | 440 lbf
Nominal Forces Nominal Tensile Force
200 kgf | 440 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (3.5-5.0 mg) to AA 5056 /5154
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
4000
Technical Specs Head Style
Peel
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel SAE 1006-1022
