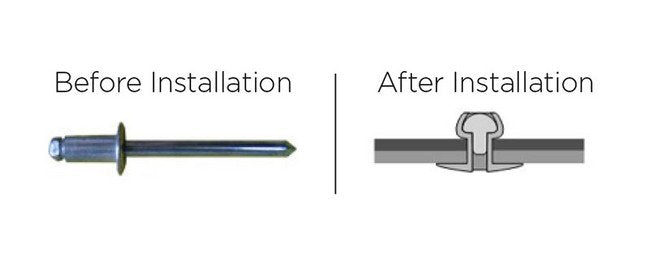

Ornit 4.8mm x 18.0mm Steel Dome Blind Rivet
Ornit 4.8mm x 18.0mm Steel Dome Blind Rivet
SKU:OPE-1cc411
Ornit 4.8mm x 18.0mm Steel Dome Blind Rivet - Reliable, durable, and corrosion-resistant blind rivet for secure fastening applications.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Ornit 4.8mm x 18.0mm Steel Dome Blind Rivet
$59.99
Quantity: 1
Claim Your Seller Account
Ornit 4.8mm x 18.0mm Steel Dome Blind Rivet
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ornit 4.8mm Diameter and 18.0mm Body Length Open End Steel Dome Blind Rivet is a sturdy and reliable fastening solution suitable for various applications. Crafted from Low Carbon Steel SAE 1006, this rivet ensures durability and strength. With a Zinc Plated Chromium VI Free finish, it offers corrosion resistance. The rivet's precise dimensions and nominal forces, including 290 kgf Shear Force and 400 kgf Tensile Force, make it ideal for secure fastening requirements. Trust Ornit for quality blind rivets that meet industry standards and ensure long-lasting performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Nominal Dimensions Body Length
18.0 mm | 0.709 in
Nominal Dimensions Diameter
4.8 mm
Nominal Dimensions Drillhole Size
4.9 mm | 0.193 in
Nominal Dimensions Head Diameter
9.3 mm | 0.366 in
Nominal Dimensions Head Thickness
1.30 mm | 0.051 in
Nominal Dimensions Mandrel Diameter
2.91 mm | 0.115 in
Nominal Dimensions Maximum Grip Range
13.0 mm | 0.512 in
Nominal Dimensions Minimum Grip Range
11.0 mm | 0.433 in
Nominal Forces Nominal Shear Force
290 kgf | 638 lbf
Nominal Forces Nominal Tensile Force
400 kgf | 880 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Low Carbon Steel, SAE 1006 or Equivalent
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
4000
Technical Specs Head Style
Steel Dome
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel SAE 1006-1022
