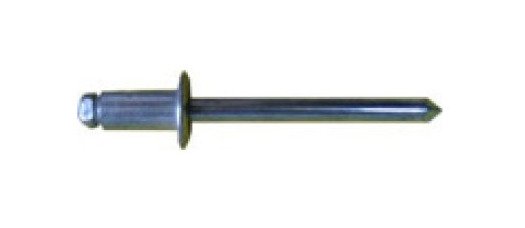

Ornit 4.8mm x 22.0mm Open End Steel Dome Blind Rivet
Ornit 4.8mm x 22.0mm Open End Steel Dome Blind Rivet
SKU:OPE-23280a
Durable Ornit 4.8mm x 22.0mm Steel Dome Blind Rivet for strong, corrosion-resistant fastening.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Ornit 4.8mm x 22.0mm Open End Steel Dome Blind Rivet
$45.99
Quantity: 1
Claim Your Seller Account
Ornit 4.8mm x 22.0mm Open End Steel Dome Blind Rivet
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ornit 4.8mm x 22.0mm Open End Steel Dome Blind Rivet is a reliable fastening solution made from Low Carbon Steel (SAE 1006 or equivalent) ensuring durability. With a zinc-plated chromium (Cr) VI free finish, it offers corrosion resistance. This rivet has a Nominal Shear Force of 290 kgf and a Nominal Tensile Force of 400 kgf, meeting stringent procurement standards for robust applications.
Product Specifications
Nominal Dimensions Body Length
22.0 mm | 0.866 in
Nominal Dimensions Diameter
4.8 mm
Nominal Dimensions Drillhole Size
4.9 mm | 0.193 in
Nominal Dimensions Head Diameter
9.3 mm | 0.366 in
Nominal Dimensions Head Thickness
1.30 mm | 0.051 in
Nominal Dimensions Mandrel Diameter
2.91 mm | 0.115 in
Nominal Dimensions Maximum Grip Range
17.0 mm | 0.669 in
Nominal Dimensions Minimum Grip Range
15.0 mm | 0.591 in
Nominal Forces Nominal Shear Force
290 kgf | 638 lbf
Nominal Forces Nominal Tensile Force
400 kgf | 880 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Low Carbon Steel, SAE 1006 or Equivalent
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
3000
Technical Specs Head Style
Steel Dome
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel SAE 1006-1022
