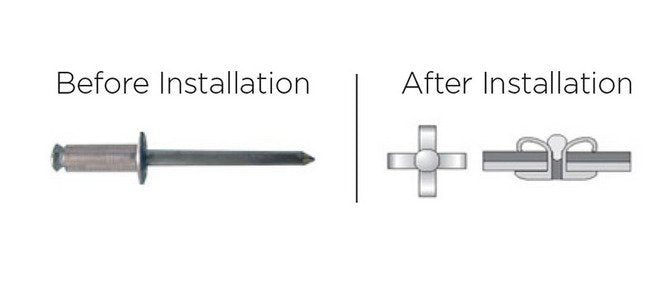

Ornit 4.8mm x 25.0mm Open End Peel Blind Rivet
Ornit 4.8mm x 25.0mm Open End Peel Blind Rivet
SKU:OPE-84cfbe
Secure fastening with Ornit 4.8mm x 25.0mm Open End Peel Blind Rivet. Aluminum Alloy construction, shear force of 200 kgf, and zinc-plated mandrel for durability.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Ornit 4.8mm x 25.0mm Open End Peel Blind Rivet
$39.99
Quantity: 1
Claim Your Seller Account
Ornit 4.8mm x 25.0mm Open End Peel Blind Rivet
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Meet your fastening needs with the Ornit 4.8mm Diameter and 25.0mm Body Length Open End Peel Blind Rivet. Crafted from Aluminum Alloy to AA 5056/5154, this rivet guarantees secure joins with a minimum grip range of 12.0mm and a maximum of 18.0mm. With a shear force of 200 kgf and tensile force of 200 kgf, it ensures reliable performance in various applications. The zinc-plated chromium mandrel and natural body finish offer corrosion resistance and durability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Nominal Dimensions Body Length
25.0 mm | 0.984 in
Nominal Dimensions Diameter
4.8 mm
Nominal Dimensions Drillhole Size
5.2 mm | 0.205 in
Nominal Dimensions Head Diameter
9.3 mm | 0.366 in
Nominal Dimensions Head Thickness
1.30 mm | 0.051 in
Nominal Dimensions Mandrel Diameter
2.61 mm | 0.103 in
Nominal Dimensions Maximum Grip Range
18.0 mm | 0.709 in
Nominal Dimensions Minimum Grip Range
12.0 mm | 0.472 in
Nominal Forces Nominal Shear Force
200 kgf | 440 lbf
Nominal Forces Nominal Tensile Force
200 kgf | 440 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (3.5-5.0 mg) to AA 5056 /5154
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
3000
Technical Specs Head Style
Peel
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel SAE 1006-1022
