Ornit 4.8mm x 30mm Open End Peel Blind Rivet
Ornit 4.8mm x 30mm Open End Peel Blind Rivet
SKU:OPE-bc5d80
Premium Ornit 4.8mm x 30mm Peel Blind Rivet for strong and secure industrial fastening needs.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Ornit 4.8mm x 30mm Open End Peel Blind Rivet
$59.99
Quantity: 1
Claim Your Seller Account
Ornit 4.8mm x 30mm Open End Peel Blind Rivet
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

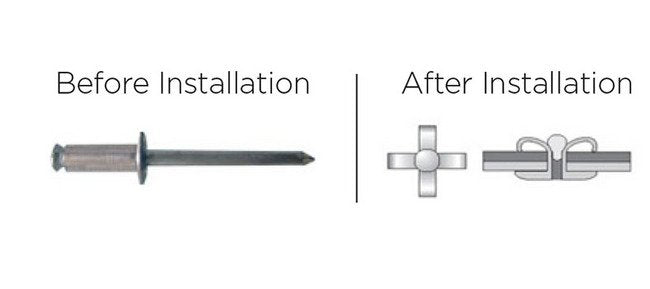

The Ornit 4.8mm Diameter and 30.0mm Body Length Open End Peel Blind Rivet is a premium fastening solution crafted from high-quality Aluminum Alloy (AA 5056/5154) with a Zinc Plated Chromium Mandrel. With a peel head design and impressive grip range of 16.0mm to 23.0mm, it offers exceptional shear and tensile forces of 200 kgf (440 lbf). Ideal for industrial applications, this rivet ensures secure and durable joints, meeting stringent industry standards for reliability and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Nominal Dimensions Body Length
30.0 mm | 1.181 in
Nominal Dimensions Diameter
4.8 mm
Nominal Dimensions Drillhole Size
5.2 mm | 0.205 in
Nominal Dimensions Head Diameter
9.3 mm | 0.366 in
Nominal Dimensions Head Thickness
1.30 mm | 0.051 in
Nominal Dimensions Mandrel Diameter
2.61 mm | 0.103 in
Nominal Dimensions Maximum Grip Range
23.0 mm | 0.906 in
Nominal Dimensions Minimum Grip Range
16.0 mm | 0.630 in
Nominal Forces Nominal Shear Force
200 kgf | 440 lbf
Nominal Forces Nominal Tensile Force
200 kgf | 440 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (3.5-5.0 mg) to AA 5056 /5154
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
3000
Technical Specs Head Style
Peel
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel SAE 1006-1022
