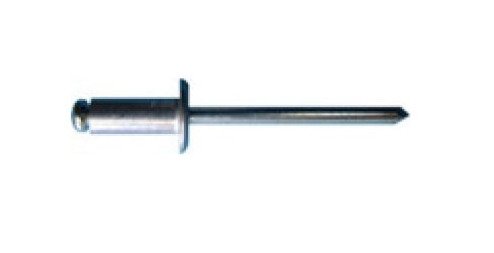

Ornit 4.8mm x 8.0mm Open End Dome Blind Rivet
Ornit 4.8mm x 8.0mm Open End Dome Blind Rivet
SKU:OPE-bfdccd
High-quality Ornit 4.8mm x 8.0mm Dome Blind Rivet for strong and secure fastening applications. Meets industry standards.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Ornit 4.8mm x 8.0mm Open End Dome Blind Rivet
$45.99
Quantity: 1
Claim Your Seller Account
Ornit 4.8mm x 8.0mm Open End Dome Blind Rivet
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ornit 4.8mm x 8.0mm Open End Dome Blind Rivet is a reliable and efficient fastening solution, featuring a Dome head style and constructed from high-quality Aluminum Alloy (AA 5052). With a Zinc Plated Chromium VI Free Mandrel, it offers exceptional shear and tensile forces of 150 kgf and 220 kgf respectively. This rivet meets stringent industry standards, ensuring durability and performance in various applications.
Product Specifications
Nominal Dimensions Body Length
8.0 mm | 0.315 in
Nominal Dimensions Diameter
4.8 mm
Nominal Dimensions Drillhole Size
4.9 mm | 0.193 in
Nominal Dimensions Head Diameter
9.3 mm | 0.366 in
Nominal Dimensions Head Thickness
1.30 mm | 0.051 in
Nominal Dimensions Mandrel Diameter
2.61 mm | 0.103 in
Nominal Dimensions Maximum Grip Range
3.0 mm | 0.118 in
Nominal Dimensions Minimum Grip Range
1.0 mm | 0.039 in
Nominal Forces Nominal Shear Force
150 kgf | 330 lbf
Nominal Forces Nominal Tensile Force
220 kgf | 484 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (2.5 mg) to AA 5052
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
6000
Technical Specs Head Style
Dome
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel SAE 1006-1022
