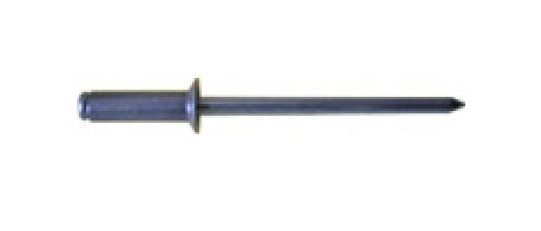

Ornit 4.8mmx25.0mm Open End Countersunk Blind Rivet
Ornit 4.8mmx25.0mm Open End Countersunk Blind Rivet
SKU:OPE-1d93c8
Premium quality Ornit blind rivet with 4.8mm diameter, designed for secure and durable fastening in industrial applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Ornit 4.8mmx25.0mm Open End Countersunk Blind Rivet
$129.99
Quantity: 1
Claim Your Seller Account
Ornit 4.8mmx25.0mm Open End Countersunk Blind Rivet
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ornit 4.8mmx25.0mm Open End Countersunk Blind Rivet is designed for secure fastening in various applications. Constructed with Aluminum Alloy body and Zinc Plated Chromium VI Free Mandrel, it offers exceptional shear and tensile strength. Its 4.8mm diameter, with a 25.0mm body length, ensures a reliable grip range of 17.0mm to 20.0mm. Ideal for industrial use, this rivet meets stringent standards for durability and performance.
Product Specifications
Nominal Dimensions Body Length
25.0 mm | 0.984 in
Nominal Dimensions Diameter
4.8 mm
Nominal Dimensions Drillhole Size
4.9 mm | 0.193 in
Nominal Dimensions Head Diameter
8.7 mm | 0.343 in
Nominal Dimensions Head Thickness
1.30 mm | 0.051 in
Nominal Dimensions Mandrel Diameter
2.61 mm | 0.103 in
Nominal Dimensions Maximum Grip Range
20.0 mm | 0.787 in
Nominal Dimensions Minimum Grip Range
17.0 mm | 0.669 in
Nominal Forces Nominal Shear Force
150 kgf | 330 lbf
Nominal Forces Nominal Tensile Force
220 kgf | 484 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (2.5 mg) to AA 5052
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
3000
Technical Specs Head Style
Countersunk
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel SAE 1006-1022
