Ornit 5/16 Inch Flanged Steel Collar
Ornit 5/16 Inch Flanged Steel Collar
SKU:FLA-ef851e
Premium Ornit 5/16" Flanged Steel Collar - Strong, Durable & Precise. Ideal for industrial projects.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Ornit 5/16 Inch Flanged Steel Collar
$99.99
Quantity: 1
Claim Your Seller Account
Ornit 5/16 Inch Flanged Steel Collar
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

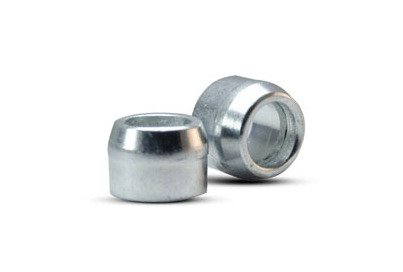

The Ornit 5/16 Inch Flanged Steel Collar is a high-quality fastening solution designed for precision and durability. Constructed from Carbon Steel c-1008 with a Zinc finish, this collar offers maximum hole diameters of 0.494 inches, ensuring a secure and reliable connection. The flanged head shape provides enhanced grip strength, ideal for applications requiring stability and uniform pressure distribution. With a weight of 6.98 kg per 1000 pieces, this collar is a reliable choice for industrial and institutional projects where quality is paramount.
Product Specifications
Note Note

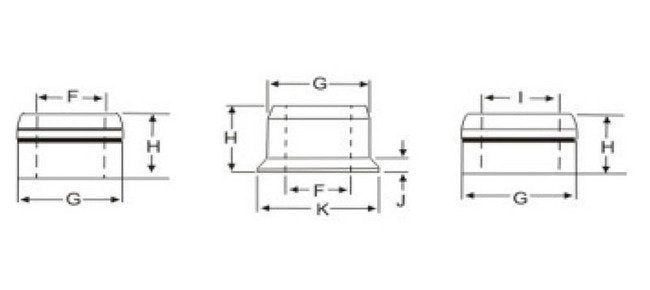

When using Flange collars, and "J" dimension to thickness of material being fastened to determine grip number.
Technical Specs Brands
Ornit
Technical Specs Coating
Zinc
Technical Specs Diameter
5/16 in
Technical Specs Diameter F
0.304 to 0.312 in
Technical Specs Finish
Zinc
Technical Specs Head Shape
Flanged
Technical Specs Length H
0.426 - 0.394 in
Technical Specs Material
Carbon Steel c-1008
Technical Specs Maximum Dimension J
0.094 - 0.062 in
Technical Specs Maximum Dimension K
0.641 - 0.609 in
Technical Specs Maximum Hole Diameter
0.494 in
Technical Specs Minimum Hole Diameter
0.485 in
Technical Specs Weight Per 1000 Pieces
6.98 kg
