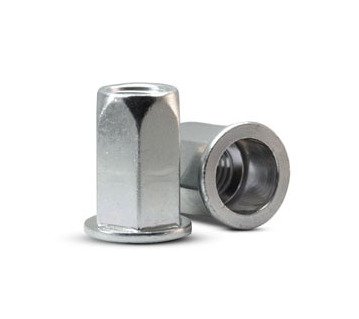

Ornit A-Series Full Hexagon Cylindrical Rivet Nut (Yellow Zinc Plated, Steel, M5)

Name: Ornit A-Series Full Hexagon Cylindrical Rivet Nut (Yellow Zinc Plated, Steel, M5)
Brand: Ornit USA
SKU: ASE-bc0503
Price: 19.99 USD
Availability: OutOfStock

SKU:ASE-bc0503

Ornit A-Series Full Hexagon Cylindrical Rivet Nut: Steel, M5, Yellow Zinc Plated. Reliable grip range 0.5-3.0mm.

$19.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance your industrial projects with precision and durability using the Ornit A-Series Full Hexagon Cylindrical Rivet Nut. Made of high-quality steel with a yellow zinc finish, this rivet nut features a flat cylindrical head design, ensuring a secure grip range from 0.5 mm to 3.0 mm. With dimensions carefully crafted for reliability, including a 13.5mm length, 7.1mm width, and 10.3mm diameter, this nut guarantees sturdy fastening. Available in stainless steel and aluminum options, meeting a variety of project needs effortlessly.

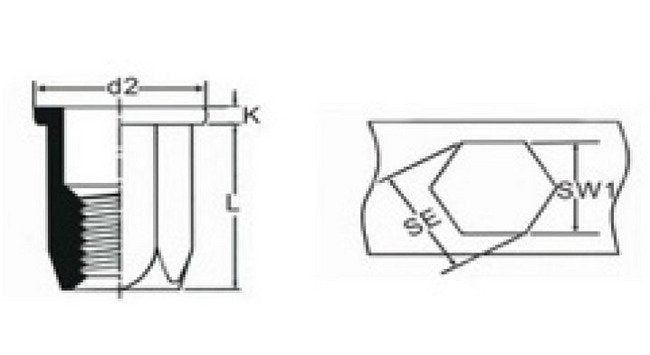

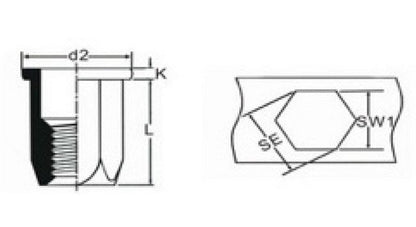

Product Specifications

Dimensions Dimension D2

10.3 mm

Dimensions Dimension K

1.0 mm

Dimensions Dimension L

13.5 mm

Dimensions Dimension Se

7.9 mm

Dimensions Dimension Sw1

7.1 mm

Dimensions Maximum Grip Range

3.0 mm

Dimensions Minimum Grip Range

0.5 mm

Note Note

Stainless Steel & Aluminum are available. Square style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Cylindrical Head (Flat)

Technical Specs Material

Steel

Technical Specs Rivet Type

Full Hexagone

Technical Specs Thread Size

M5 | SW 7.0

Ornit A-Series Full Hexagon Cylindrical Rivet Nut (Yellow Zinc Plated, Steel, M5)
