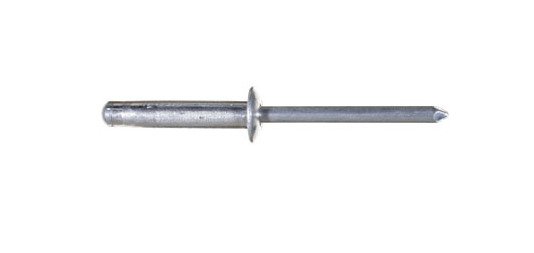

Ornit Aluminum Dome Head Rivet
Ornit Aluminum Dome Head Rivet
SKU:ORB-074888
Secure components with precision using the Ornit Aluminum Dome Head Rivet. Ideal for doors, rails, and vehicles. Reliable and durable.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Ornit Aluminum Dome Head Rivet
$49.99
Quantity: 1
Claim Your Seller Account
Ornit Aluminum Dome Head Rivet
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

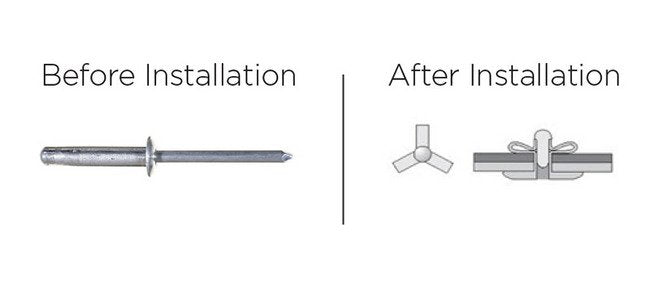

The Ornit Aluminum Dome Head Rivet, with a body length of 31.0mm, is a reliable aluminum alloy fastener designed for securing a variety of components. It features a split tail for multi-grip functionality, preventing electrical issues and corrosion. With a high nominal shear force of 92kgf and tensile force of 122kgf, this rivet ensures a highly secure joint in automotive, door, and rail applications. Its compliance with industry standards makes it a top choice for institutions seeking durability and performance.
Product Specifications
Applications Automotive Application
InteriorThe Or Bulb is an aluminum alloy, multi-grip fastener with split tail that forms a large blind side area. It creates a highly secure joint in variety of components within your vehicle.
Nominal Dimensions Body Length
31.0 mm | 1.220 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
5.0 to 5.3 mm | 0.196 to 0.208 in
Nominal Dimensions Head Diameter
9.8 mm | 0.386 in
Nominal Dimensions Head Thickness
1.80 mm | 0.071 in
Nominal Dimensions Mandrel Diameter
2.9 mm | 0.114 in
Nominal Dimensions Maximum Grip Range
19.0 mm | 0.748 in
Nominal Dimensions Minimum Grip Range
11.0 mm | 0.433 in
Nominal Forces Nominal Shear Force
92 kgf | 202 lbf
Nominal Forces Nominal Tensile Force
122 kgf | 268 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
2000
Technical Specs Head Style
Dome Head
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Aluminum Alloy ALmg 2.5
