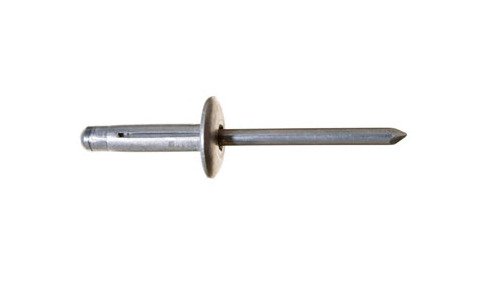

Ornit Aluminum Large Head Rivet - 17.5mm Body
Ornit Aluminum Large Head Rivet - 17.5mm Body
SKU:ORB-30413e
Securely fasten components with Ornit Aluminum Large Head Rivet. Aluminum Alloy ALmg 2.5, high grip range, and superior strength.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Ornit Aluminum Large Head Rivet - 17.5mm Body
$29.99
Quantity: 1
Claim Your Seller Account
Ornit Aluminum Large Head Rivet - 17.5mm Body
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

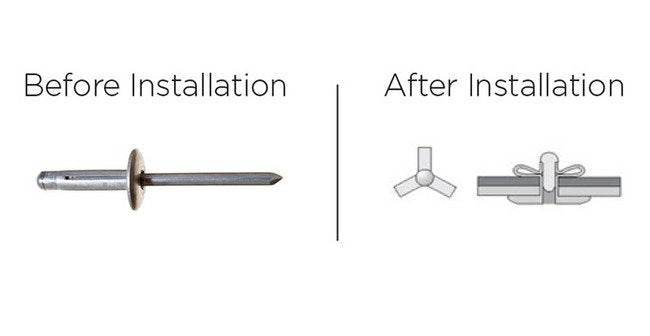

The Ornit Aluminum Large Head Rivet is a high-quality fastening solution designed for secure assembly in a variety of applications, including doors, interior cabin, and rail securing. Made of Aluminum Alloy ALmg 2.5, it features a large blind side area and a split tail for enhanced grip and joint security. With a maximum grip range of 6.3mm, nominal shear force of 92 kgf, and nominal tensile force of 122 kgf, this rivet ensures durability and reliability. Ideal for automotive interiors, this rivet meets stringent industry standards for performance and safety.
Product Specifications
Applications Automotive Application
InteriorIt creates a highly secure joint in variety of components within your vehicle.
Nominal Dimensions Body Length
17.5 mm | 0.689 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
5.0 to 5.3 mm | 0.196 to 0.208 in
Nominal Dimensions Head Diameter
14 mm | 0.551 in
Nominal Dimensions Head Thickness
2.00 mm | 0.079 in
Nominal Dimensions Mandrel Diameter
2.9 mm | 0.114 in
Nominal Dimensions Maximum Grip Range
6.3 mm | 0.248 in
Nominal Dimensions Minimum Grip Range
1.0 mm | 0.039 in
Nominal Forces Nominal Shear Force
92 kgf | 202 lbf
Nominal Forces Nominal Tensile Force
122 kgf | 268 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
2500
Technical Specs Head Style
Large
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Aluminum Alloy ALmg 2.5
