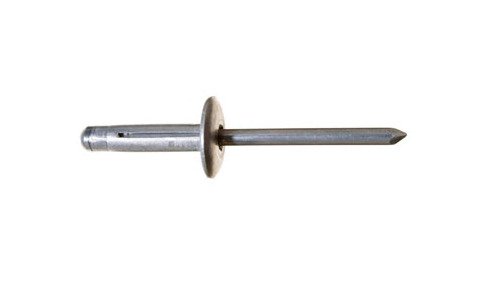

Ornit Aluminum X-Large Head Rivet 20.5mm
Ornit Aluminum X-Large Head Rivet 20.5mm
SKU:ORB-9ad2b9
Premium Ornit Aluminum Rivet for secure fastening in diverse applications, featuring high strength and corrosion resistance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Ornit Aluminum X-Large Head Rivet 20.5mm
$29.99
Quantity: 1
Claim Your Seller Account
Ornit Aluminum X-Large Head Rivet 20.5mm
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

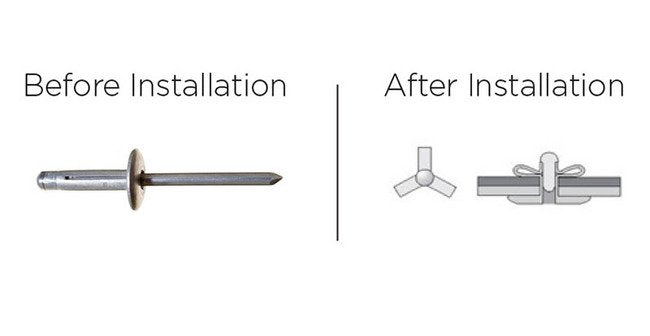

The Ornit Aluminum X-Large Head Rivet is a high-quality fastening solution designed for securing various components with exceptional strength and resistance to corrosion. Made from Aluminum Alloy ALmg 2.5, it features a large blind side area and a split tail for secure installations. With a nominal shear force of 92 kgf and a nominal tensile force of 122 kgf, this rivet ensures reliable performance in a variety of applications, including automotive interiors. Suitable for soft materials, it offers a grip range of 1.0mm to 9.0mm, meeting the demands of institutional and government buyers for durability and security.
Product Specifications
Applications Automotive Application
InteriorIt creates a highly secure joint in variety of components within your vehicle.
Nominal Dimensions Body Length
20.5 mm | 0.807 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
5.0 to 5.3 mm | 0.196 to 0.208 in
Nominal Dimensions Head Diameter
15.9 mm | 0.624 in
Nominal Dimensions Head Thickness
2.00 mm | 0.079 in
Nominal Dimensions Mandrel Diameter
2.9 mm | 0.114 in
Nominal Dimensions Maximum Grip Range
9.0 mm | 0.354 in
Nominal Dimensions Minimum Grip Range
1.0 mm | 0.039 in
Nominal Forces Nominal Shear Force
92 kgf | 202 lbf
Nominal Forces Nominal Tensile Force
122 kgf | 269 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
2500
Technical Specs Head Style
Extra Large
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Aluminum Alloy ALmg 2.5
