Ornit Aluminum X-Large Head Rivet 24.0mm
Ornit Aluminum X-Large Head Rivet 24.0mm
SKU:ORB-8728e5
High-quality Ornit Aluminum X-Large Head Rivet for secure, corrosion-resistant joints in diverse applications.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Ornit Aluminum X-Large Head Rivet 24.0mm
$34.99
Quantity: 1
Claim Your Seller Account
Ornit Aluminum X-Large Head Rivet 24.0mm
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

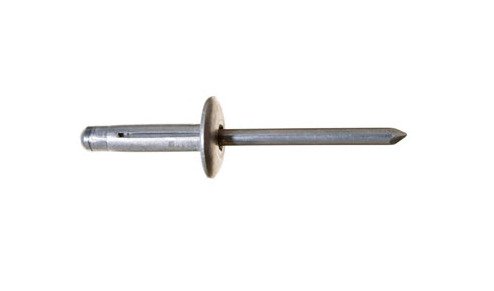

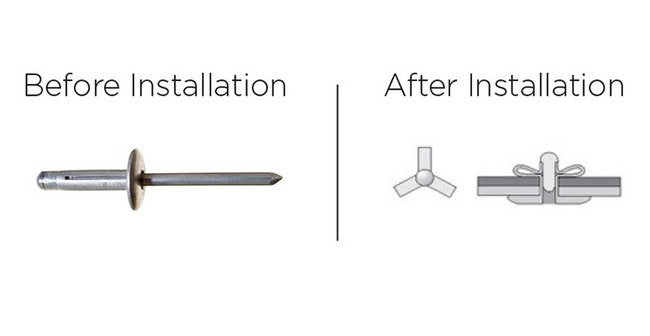

The Ornit Aluminum X-Large Head Rivet is a high-quality fastener suitable for a range of applications. Made of Aluminum Alloy ALmg 2.5 with a natural finish, this rivet offers exceptional strength and corrosion resistance. With a large blind side area and a split tail design, it ensures a secure joint, ideal for soft material assemblies. Engineered for excellence, it meets rigorous standards for durability and performance, making it a top choice for securing doors, interior cabin components, and transport goods.
Product Specifications
Applications Automotive Application
InteriorIt creates a highly secure joint in variety of components within your vehicle.
Nominal Dimensions Body Length
24.0 mm | 0.945 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
5.0 to 5.3 mm | 0.196 to 0.208 in
Nominal Dimensions Head Diameter
15.9 mm | 0.624 in
Nominal Dimensions Head Thickness
2.00 mm | 0.079 in
Nominal Dimensions Mandrel Diameter
2.9 mm | 0.114 in
Nominal Dimensions Maximum Grip Range
12.0 mm | 0.472 in
Nominal Dimensions Minimum Grip Range
4.0 mm | 0.157 in
Nominal Forces Nominal Shear Force
92 kgf | 202 lbf
Nominal Forces Nominal Tensile Force
122 kgf | 269 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
2000
Technical Specs Head Style
Extra Large
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Aluminum Alloy ALmg 2.5
