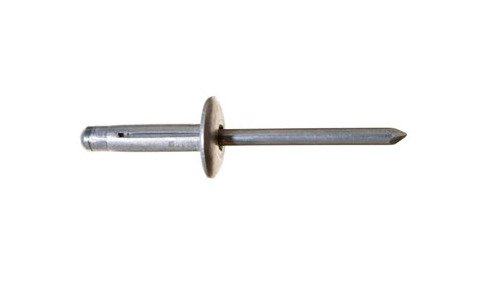

Ornit Aluminum XL Head Rivet 15.3mm
Ornit Aluminum XL Head Rivet 15.3mm
SKU:ORB-a07ad7
Ornit Aluminum XL Head Rivet: Strength, durability, and precision in secure assembly for doors, rails, and automotive interiors.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Ornit Aluminum XL Head Rivet 15.3mm
$29.99
Quantity: 1
Claim Your Seller Account
Ornit Aluminum XL Head Rivet 15.3mm
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ornit Aluminum XL Head Rivet boasts exceptional strength and durability, designed for secure assembly in a variety of door components and rail systems. Made from Aluminum Alloy ALmg 2.5 with a natural finish, it features a large blind side area for enhanced performance. With a Nominal Tensile Force of 122 kgf, this rivet ensures a highly secure joint, preventing electrical issues and corrosion. Ideal for automotive interiors and soft material applications, it meets rigorous industry standards for precision and reliability.
Product Specifications
Applications Automotive Application
InteriorIt creates a highly secure joint in variety of components within your vehicle.
Nominal Dimensions Body Length
15.3 mm | 0.602 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
5.0 to 5.3 mm | 0.196 to 0.208 in
Nominal Dimensions Head Diameter
15.9 mm | 0.624 in
Nominal Dimensions Head Thickness
2.00 mm | 0.079 in
Nominal Dimensions Mandrel Diameter
2.9 mm | 0.114 in
Nominal Dimensions Maximum Grip Range
4.0 mm | 0.157 in
Nominal Dimensions Minimum Grip Range
1.0 mm | 0.039 in
Nominal Forces Nominal Shear Force
92 kgf | 202 lbf
Nominal Forces Nominal Tensile Force
122 kgf | 269 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
2000
Technical Specs Head Style
Extra Large
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Aluminum Alloy ALmg 2.5
